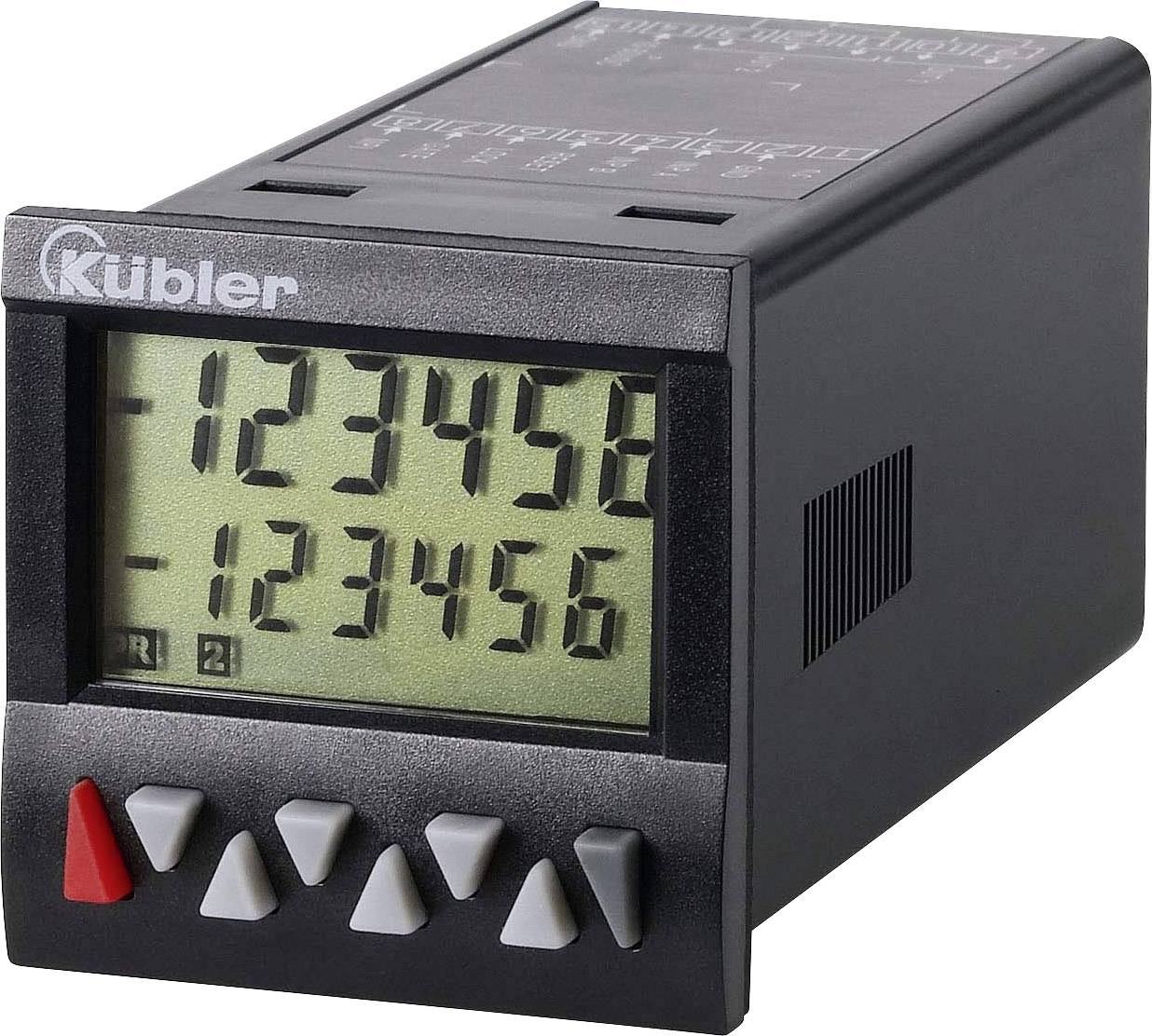

Kübler Group Codix 923 Preset counter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 193.27 / piece)
€ 193.28
€ 193.27
plus VAT.
Only 2 Piece(s) available
Highlights & Details

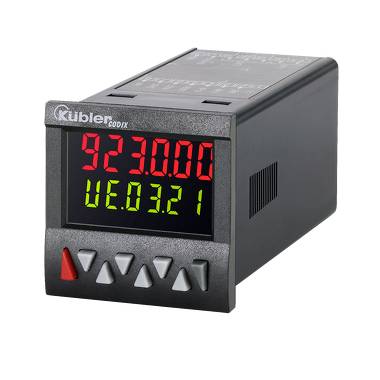

Kübler CODIX 923 LCD Preset Counter, multi-functional, pulse, frequency, time, 90...260 V AC
- Multi-functional
- Counters
- Tachometers, and time counter in one device
- Used as a preset counter
- Batch Counter or total counter
- Pre-selections: 923:1
- Relay or opto-coupler outputs
- Many different counting modes for Impulse, time and frequency
- Scalable display through Multipack Lika and division factor
- Setting value
- Longer-range power supply.
- Mean-value formation
- Start delay (tachometer)
- Steps or tow (save re-program the warning signal is)
- Quickly and easily
- Direct input of the worwahlen via the front keys or teach-in input
- Quick to install by plug-in screw terminals
- Maximum counting frequency 60 kHz
- Simultaneous display of the actual value and the pre-selections
- Batch number or total
- Symbols for angezeite pre-selection and state of the Outputs
- 3 predefined parameter settings
- Programming
- Minimal installation depth
- 4-step reset modes
- 3-stage keyboard locking
- Multi-colored display for better distinction
Technical specifications
- Number of places: 2 x 6
- Size Front (mm): 48 x 48
- Control panel cut-out (mm): 45 x 45
- Depth (mm): 91
- Temperature range: -20 … +65 (°C)
- Protection class IP65 max.
- Product type
Preset counter
- Reading type
Pulse
- Type
Codix 923
- Recess width
45 mm
- Display (counts)
6
- Recess height
45 mm
- Dim
(L x W x H) 107 x 48 x 48 mm
- Weight
0.2 kg
- Display lighting
RGB
- Features
Colour display
- Recess depth
91 mm
- Width
48 mm
- Height
48 mm
- Length
107 mm
- Frame width
48 mm
- Interfaces
Screw terminal
Documents & Downloads
Datasheet
Datasheet 1602801 Kübler Group Codix 923 Preset counter
User & Safety Instructions
User & Safety Instructions 1602801 Kübler Group Codix 923 Preset counter
Description
The Codix Multifunction Preset counter 923 / 924 can be used universally. As Pulse Preset Counter, speedometer or time preset counter with up to 6 pre-selections, it offers a range of options, control and monitoring tasks in each application. With the 2-line display in 4 different versions of the counter can be best read and clearly with the decade buttons easily programd. By a batch counter or total sum function are also more complex control systems can be implemented.
