Buy Kübler Group Codix 531 Digital Thermometer Display -19999 up to + 99999 ºC

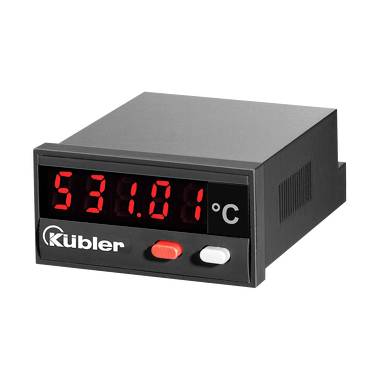

Kubler digital temperature display reads 531.01 °C with two front buttons on a black panel meter.

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 151.25 / piece)

€ 151.25

plus VAT.

Only 2 Piece(s) available

14 days return policy included

Report legal concerns

Highlights & Details

Temperature display Codix 531

Assembly dimensions 45 x 22 mm

Technical specifications

Product type: Meter

Reading type: Temperature

Reading range (min.): -19999 °C

Type: Codix 531

Reading range (max.): +99999 °C

Display technology: LED

Recess width: 45 mm

Recess height: 22 mm

Dim: (L x W x H) 69 x 48 x 24 mm

Max. operating voltage: 30 V DC

Min. operating voltage: 10 V DC

Width: 48 mm

Height: 24 mm

Length: 69 mm

Interfaces: Screw terminal

Digit height: 8 mm

Depth: 69 mm

Digits: 5

Assembly dimensions: 45 x 22 mm

Accuracy: Depending on sensor

Total dimensions: 48 x 24 mm

Temperature: -19999 up to + 99999 ºC

Sample rate: 0.2 s

Temperature resolution: 0,1 oder 1 °C/ °F

Operating voltage: 10 - 30 V DC

Documents & Downloads

Datasheet

Datasheet 120994 Kübler Group Codix 531 Digital Thermometer Display -19999 up to + 99999 ºC

User & Safety Instructions

User & Safety Instructions 120994 Kübler Group Codix 531 Digital Thermometer Display -19999 up to + 99999 ºC

Description

Temperature display in º C or º F × Min.-/Max.Value capture and data storage at power off · Galvanically separated reverse polarity protection · Screw terminal connection 5 mm grid · Easy to programme and operate · Uniform Codix design · 5 measurements per second · Latch input for display storage.
