Kübler Group G300004 G.300.004 DIN mount 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Only 7 Piece(s) available
Highlights & Details
DIN track Holder24x48
- Cut-out 25 x 50 mm
- For snap mounting on 35 mm DIN top hat rail
Technical specifications
- Product type
DIN mount
- Compatible with
Kübler
- Type
G.300.004
Documents & Downloads
Datasheet
Datasheet 123255 Kübler Group G300004 G.300.004 DIN mount 1 pc(s)
User & Safety Instructions
User & Safety Instructions 123255 Kübler Group G300004 G.300.004 DIN mount 1 pc(s)
Description

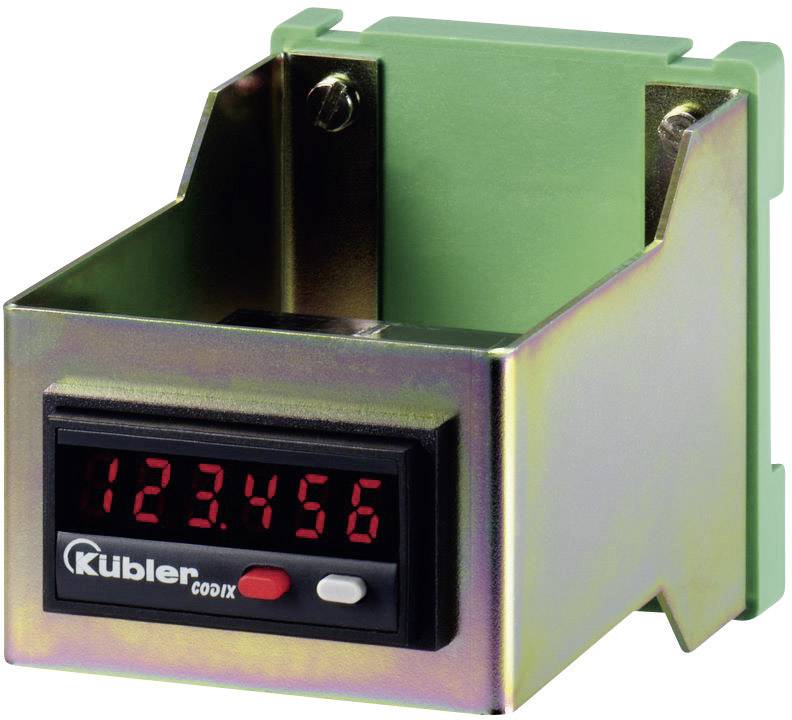

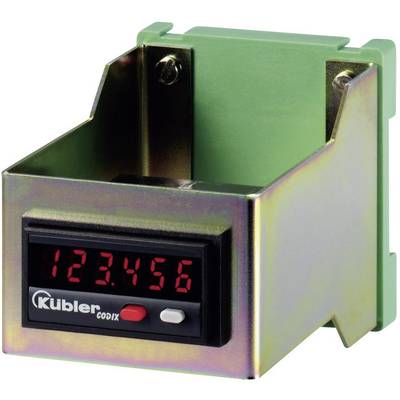

Metal bracket for mounting on the kübler modules on a DIN rail. For the installation of all counter, timer, process devices with the DIN dimensions 24 x 48 mm or 50 x 25 mm such as CODIX 52X, codix 53 X, CODIX 13X, Codix 14x as well as electro-mechanical pulse, and time counter as H37, W17.50, etc.
This text is machine translated.
This text is machine translated.
Features
- Materials: counter holder: chromated steel sheet, DIN Hut-Schienen-Adapter: fiber reinforced polyamide.
Hints
For the installation of modules with DIN dimensions 24 x 48 mm is the installation of the adapter front frame 37.2 for front panel cut-out 50 x 25 mm to 45 x 22.2 mm (T 008180 Anthracite, T 008165 black).
