Kübler Group 6.190.012.G00 Meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
Only 2 Piece(s) available
Highlights & Details

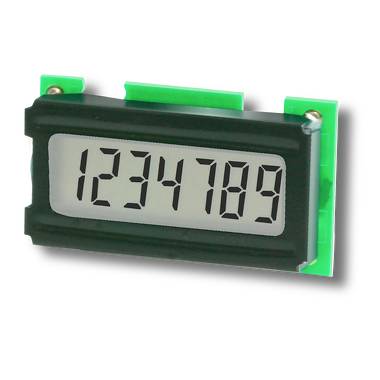

Kübler 190 pulse counter LCD module, adding, 7-digit (DC)
- Powerful
- Counter frequency up to 10 kHz
- 7-digit LCD display
- 6 mm high
- Low power consumption
- Large voltage and temperature range
- Very high shock and vibration resistance
- Simply
- Non-volatile memory (no batteries)
- One-channel count input
- Reset electrically
- Very high reliability
- Compact design and very favorable price
Technical specifications
- Number of places: 7
- Size Front (mm): 32 x 18
- Depth (mm): 5
- Temperature range: -40 … +80 °C (°C)
- Product type
Meter
- Reading type
Pulse
- Type
6.190.012.G00
- Display technology
LCD
- Display (counts)
7
- Recess height
18 mm
- Operating voltage
60 V DC
- Dim
(W x H x D) 32 x 18.4 x 11 mm
- Recess depth
5 mm
- Width
32 mm
- Height
18.4 mm
- Frame width
32 mm
- Digit height
6 mm
- Depth
11 mm
Documents & Downloads
Datasheet
Datasheet 1602793 Kübler Group 6.190.012.G00 Meter
User & Safety Instructions
User & Safety Instructions 1602793 Kübler Group 6.190.012.G00 Meter
Description
The single-channel number module type 190 for PCB mounting with 2 voltage ranges (4.75... 15 and 9... 60 V DC) and 7-digit, large LCD display has a very large temperature area. Thus the device is extremely robust and for many areas of application even under extreme conditions.
This text is machine translated.
This text is machine translated.
