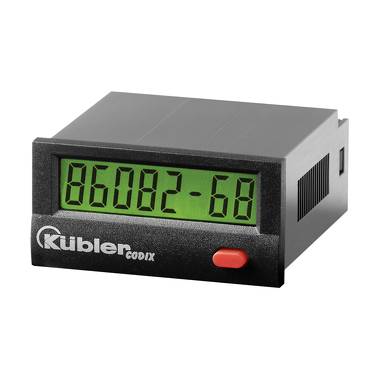

Kübler Group Codix 134 Service hours counter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
14-day return policy included
Highlights & Details
Time counter Codix 134
Technical specifications
- Product type
Service hours counter
- Type
Codix 134
IP65 (front)
- Dim
(W x H x D) 48 x 24 x 53 mm
- Width
48 mm
- Height
24 mm
- Digit height
8 mm
- Depth
53 mm
- Connections
Screw terminals
- Display (details)
LCD
- Assembly dimensions
45 x 22 mm
- Counter range
99999h59m/ 99999.99 h
- Reset
Button
- Input voltage
Optocoupler 10 - 260V AC/DC
- Operating voltage
Lithium battery
Documents & Downloads
Datasheet
Datasheet 121006 Kübler Group Codix 134 Service hours counter
User & Safety Instructions
User & Safety Instructions 121006 Kübler Group Codix 134 Service hours counter
Description
The Codix LCD counter is very easy to read by backlit display with 8 millimetre display. Filter function for bounce-free counting with mechanical contacts.
Features
- Counter display 7-digit
- Time range from 0.1 seconds to 100,000 hours
- Suitable for short operation times due to 0.1 second pulse increment
- HB type with backlighting
