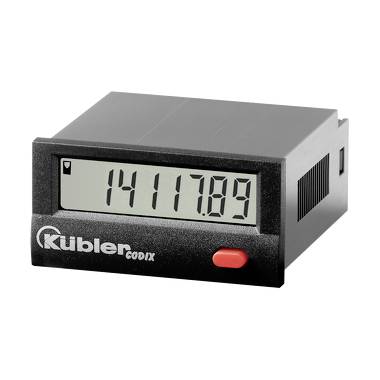

Kübler Group Codix 141 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 64.70
€ 63.86
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Time counter Codix 141
- Assembly dimensions 22 x 45 mm
Technical specifications
- Product type
Digital rack-mount meter
- Type
Codix 141
- Display technology
LCD
IP65
- Dim
(W x H x D) 48 x 24 x 53 mm
- Factory colour
Black
- Width
48 mm
- Height
24 mm
- Interfaces
Screw terminal
- Digit height
8 mm
- Depth
53 mm
- Connections
Screw terminals
- Digits
7
- Display (details)
LCD
- Assembly dimensions
22 x 45 mm
- Counter range
99999.99 h
- Reset
Button
- Input voltage
PNP 4 - 30V DC
- Operating voltage
10 - 30 V DC
Documents & Downloads
Datasheet
Datasheet 123259 Kübler Group Codix 141 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 123259 Kübler Group Codix 141 Digital rack-mount meter
Description
The Codix LCD counter is very easy to read by backlit display with 8 millimetre display. Filter function for bounce-free counting with mechanical contacts.
Features
- Robust plastic housing IP 65
- Screw terminal connection 5 mm grid
- Lockable reset button
- Data storage: EEPROM
- Various counting modes
- incl. seal, adapter frame (56 x 40; 53 x 28).
