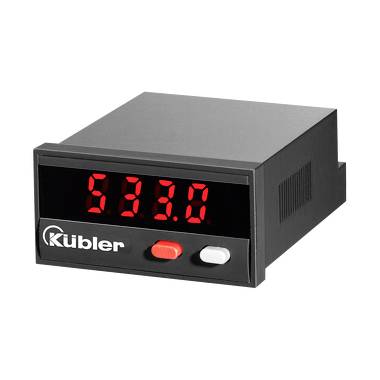

Kübler Group Codix 533 Digital rack-mount meter 0 - 12 V/DC/0 - 24 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Being Codix 533
- Accuracy of < 0.1%
- Suitable for simulation runs
- Process cycles simpler than in other systems
Technical specifications
- Capacity: max 1 W
- EMV: Breakdown radiation after EN 55011 and noise immunity EN61000-6-2
- Testing voltages: EN61010-1
- Degree of pollution: 2
- Product type
Digital rack-mount meter
- Reading type
Voltage
- Reading range (min.)
0 V
- Type
Codix 533
- Reading range (max.)
12 V
- Display technology
LED
IP65 (front)
- Dim
(W x H x D) 48 x 24 x 59 mm
- Weight
0.05 kg
- Factory colour
Black
- Width
48 mm
- Height
24 mm
- Interfaces
Analogue voltage
- Digit height
8 mm
- Depth
59 mm
- Digits
4
- Display (details)
LED
- Assembly dimensions
48 x 24 mm
- Total dimensions
48 x 24 x 59 mm
- Power supply (details)
10 - 30 V DC
- Counter range
4-stellig
- Display range
0 - 9999
- Temperature range
-10 to +50 °C
- Reading range
0 - 12 V/DC/0 - 24 mA
- Input voltage
10 - 30 V DC
- Reading category
2
Documents & Downloads
Datasheet
Datasheet 122369 Kübler Group Codix 533 Digital rack-mount meter 0 - 12 V/DC/0 - 24 mA
User & Safety Instructions
User & Safety Instructions 122369 Kübler Group Codix 533 Digital rack-mount meter 0 - 12 V/DC/0 - 24 mA
Description
The being CODIX 533 is used in process technique and automation, where it opens new application type. By its LED display with four digits it can indicate physical dimension in form of an unit signal of 0 to 12 V or 0 24 mA. The display unit can be programmed and indicated freely. It is not more necessary converting the expenditure value. The equipment has the function of a digital timer with similar output. The CODIX 533 possesses manual functions with direct input or treppenförmige, gradual expenditure of the desired value and the moreover convinces its large accuracy of < 0.1% of the final value. It is suitable for simulation runs and facilitates the process cycles however to other systems. The user friendly operation over two keys and plain language minimize programming errors. By the display of the spent desired value simple control is possible. The CODIX 533 possesses still 3 separate functions, which is in series integrated.
Features
- Unit signal 0 12 V/0 24 mA, time-steered signal sequence
