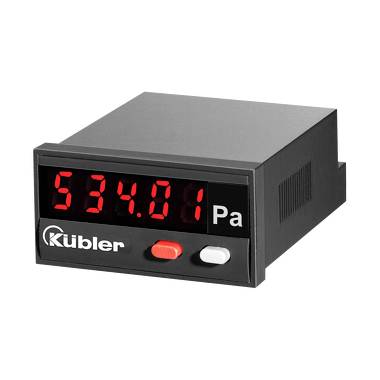

Kübler Group Codix 534 Process display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Process display Codix 529
- 5-digit process display in DIN housing
- Scalable standard signal display
- Fast measurement time of max. 0.1 seconds
Technical specifications
- Measurement cycle 0.1 s.
- Temperature range: -20 to +65 °C
- Product type
Process display
- Type
Codix 534
- Display technology
LED
IP65 (front)
- Recess width
45 mm
- Display (counts)
5
- Recess height
22 mm
- Dim
(W x H x D) 48 x 24 x 69 mm
- Max. operating voltage
30 V
- Min. operating voltage
10 V
- Recess depth
68 mm
- Factory colour
Black
- Width
48 mm
- Height
24 mm
- Digit height
8 mm
- Depth
69 mm
- Resolution
14 Bit
- Assembly dimensions
45 x 22 mm
- Total dimensions
48 x 24 x 59 mm
- Power supply (details)
10 - 30 V DC
- Temperature range
-10 to +50 °C
- Input voltage
10 - 30 V DC
- Operating voltage
10 - 30 V DC
Documents & Downloads
Datasheet
Datasheet 120701 Kübler Group Codix 534 Process display
User & Safety Instructions
User & Safety Instructions 120701 Kübler Group Codix 534 Process display
Description
5-digit analogue display in DIN case.
Features
- Scalable standard signal indicator
Scope of delivery
- Codix 534
- digital display
- Panel mounting clip
- Gasket
- Front frame for screw fixing (T008181) 56 x 40 mm, installation cross-section 50 x 25 mm
- Front frame for clamp attachment (T008180) 53 x 28 mm, installation cross-section 50 x 25 mm
- 1 set of self-adhesive symbols
- User manual
