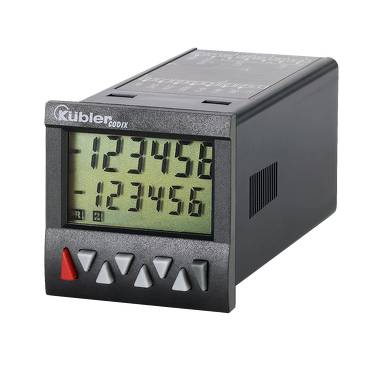

Kübler Group Codix 907 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.45
€ 113.44
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Pre-selection counter CODIX 907 DC
- For Impulse, time und Position
- 1 prechoice
Technical specifications
- Product type
Digital rack-mount meter
- Reading type
Pulse
- Type
Codix 907
- Display technology
LCD
IP65 (front)
- Dim
(W x H x D) 48 x 48 x 91 mm
- Weight
150 g
- Factory colour
Black
- Width
48 mm
- Height
48 mm
- Interfaces
Screw terminal
- Depth
91 mm
- Connections
Screw-plug terminals
- Digits
2 x 6
- Display (details)
LCD
- Switching voltage
250 V/AC, 110 V DC
- Switching current
3 A
- Counter range
-999999 bis +999999
- Counter type
Impulse/time
- Reset
Electrically/Button
- Temperature range
-10–+50 °C
- Input voltage
10 - 30 V DC
- Switching capacity
750 VA/90 W
Documents & Downloads
Datasheet
Datasheet 125685 Kübler Group Codix 907 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 125685 Kübler Group Codix 907 Digital rack-mount meter
Description
Suitable pre-selector with 1 choice and 2 shift outputs.
Features
- LCD-display with pre-indicators
- Decade keyboard
- Clear-text programming
- Pluggable Screw terminals
- Reset automatically by pressing or electrically.
