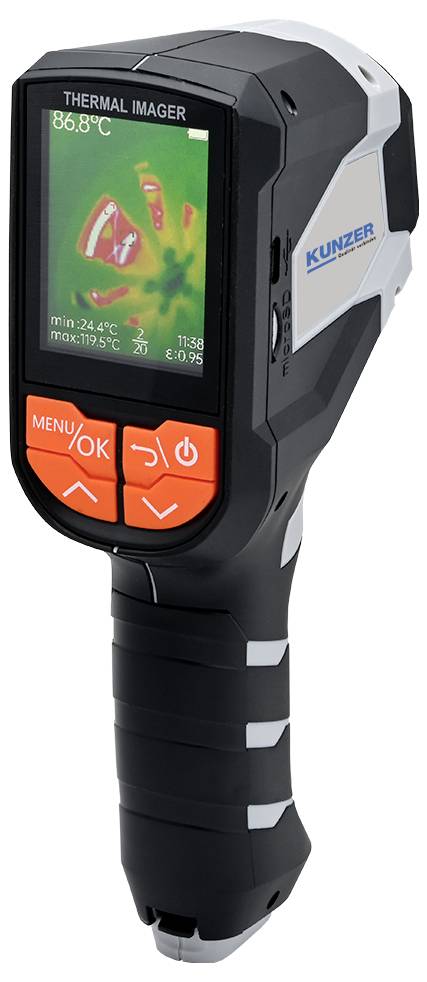

Kunzer 7WBK02 IR camera -20 up to 1000 °C 9 Hz micro-SD
EAN:
Part number:
Item no:
Highlights & Details
IR Camera
- 9 Hz Thermal imaging camera
- Temperature reading range -20 up to 1000 °C
- Bolometer matrix
- Thermal sensitivity 200 mK
Technical specifications
- • Display: 2.4" LCD color screen (128 x 160 TFT)
- • Thermal sensitivity: 200 mK
- • Memory option: Micro SD card (not included)
- Type
7WBK02
- Product type
IR camera
- Temperature reading range (max.)
1000 °C
- Temperature reading range (min.)
-20 °C
- Frame rate
9 Hz
- Display resolution
32 x 32 Pixel
- Thermal sensitivity
200 mK
- Dim
(L x W x H) 300 x 210 x 85 mm
- Temperature resolution
°C
- Display
LCD color screen
- Weight
195 g
- Temperature reading range
-20 up to 1000 °C
- Width
210 mm
- Height
85 mm
- Length
300 mm
- Features
micro-SD
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3345185 Kunzer 7WBK02 IR camera -20 up to 1000 °C 9 Hz micro-SD
Information
Information 3345185 Kunzer 7WBK02 IR camera -20 up to 1000 °C 9 Hz micro-SD
Description
Contact-free temperature measurement with the representation of temperature distribution on surfaces with center point of measurement field as direct measured value. Hot/cold spot display
For the most varied application areas like e.g. brakes, heating/cooling, wheel bearings,
Electrical components, heat flows and motor components.
The menu control makes it easy to use and interpret the
Camera.
Data storage via integrated Micro SD card slot and USB Mini cable.
This text is machine translated.
For the most varied application areas like e.g. brakes, heating/cooling, wheel bearings,
Electrical components, heat flows and motor components.
The menu control makes it easy to use and interpret the
Camera.
Data storage via integrated Micro SD card slot and USB Mini cable.
This text is machine translated.
Scope of delivery
- IR Camera
- 3x AAA batteries
