Kunzer Hydraulic punch press
EAN:
Part number:
Item no:
Highlights & Details
Workshop press 20 t
- / battery
Technical specifications
- Product type
Hydraulic punch press
- Weight
97 kg
- Width
690 mm
- Height
1670 mm
- Length
550 mm
- Dim
(L x W x H) 550 x 690 x 1670 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282260 Kunzer Hydraulic punch press
Information
Information 3282260 Kunzer Hydraulic punch press
Description

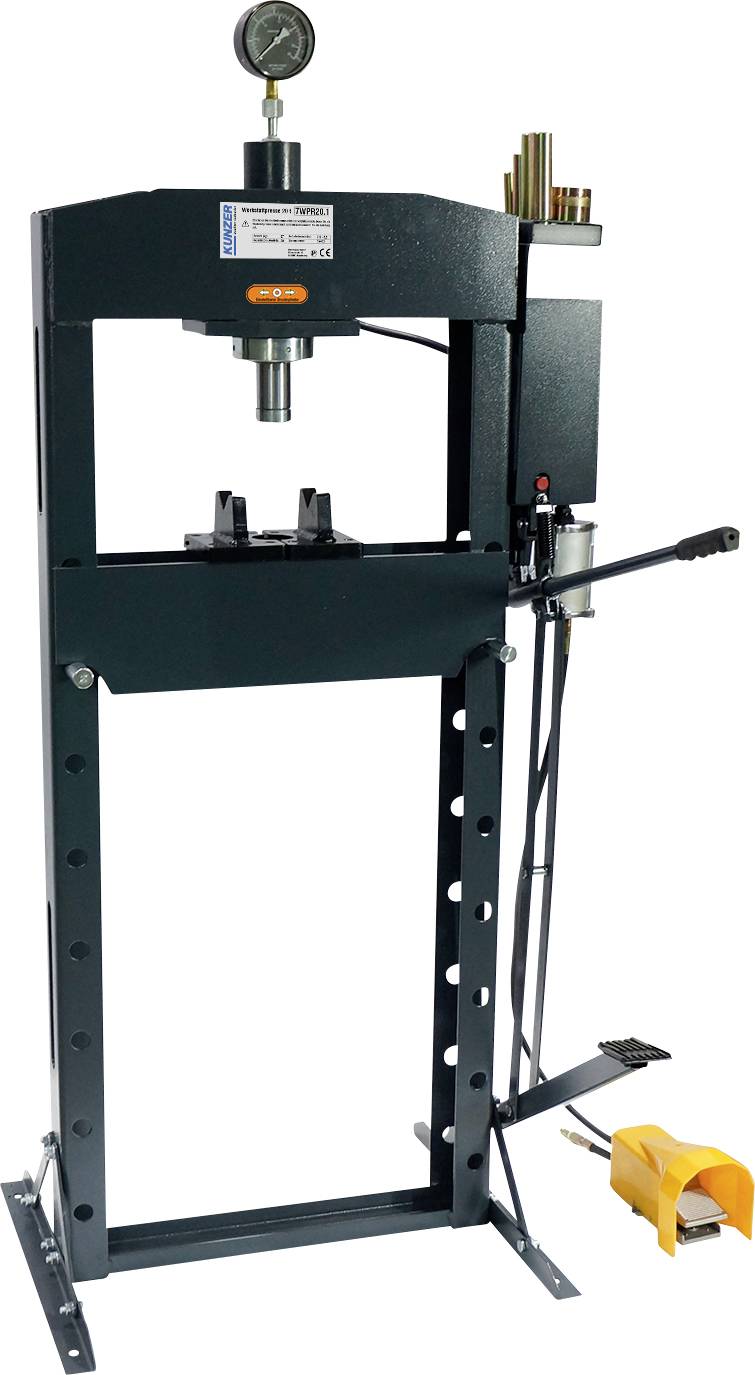

Workshop press with side-adjustable hydraulic press cylinder and table height adjustment.
Hydraulic actuation with quick foot pneumatic attachment.
Integrated pressure gauge, safety valve, adapter kit and 2 guide blocks (plan and V-shape).
The lifting capacity, the size and the universal control options make this workshop press an indispensable part of a modern workshop.
This text is machine translated.
Hydraulic actuation with quick foot pneumatic attachment.
Integrated pressure gauge, safety valve, adapter kit and 2 guide blocks (plan and V-shape).
The lifting capacity, the size and the universal control options make this workshop press an indispensable part of a modern workshop.
This text is machine translated.
Features
- Capacity/pressure 20 t.
- Lift hydraulic cylinder: 150 mm
- Air pressure 7.5 to 8.5 bar
- Table width 500 mm
- Table height 50 - 925 mm
- Pressed cylinder displacement: 200 mm
