Kunzer WK 2068 Kunzer WK 2068 N/A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kunzer WK 2068 N/A
- Precise and continuous lifting and lowering
- Full flexibility through foldable segments front and rear
- Magnetic operating part
- Fully maneuverable lifting platform thanks to removable wheel set
- Ramp and two automatic lashing straps included
- Resistant and structured paint surface in anthracite gray
- Is supplied pre-assembled
Technical specifications
- Height minimum 200 mm
- Product type
Motorcycle lift
- Tension/pressure capacity
680 kg
- Dim
(L x W x H) 2200 x 750 x 1040 mm
- Weight
224 kg
- Content
1 pc(s)
- Width
750 mm
- Height
1040 mm
- Length
2200 mm
Documents & Downloads
Datasheet
Datasheet 3557653 Kunzer WK 2068 Kunzer WK 2068 N/A
User & Safety Instructions
User & Safety Instructions 3557653 Kunzer WK 2068 Kunzer WK 2068 N/A
Description

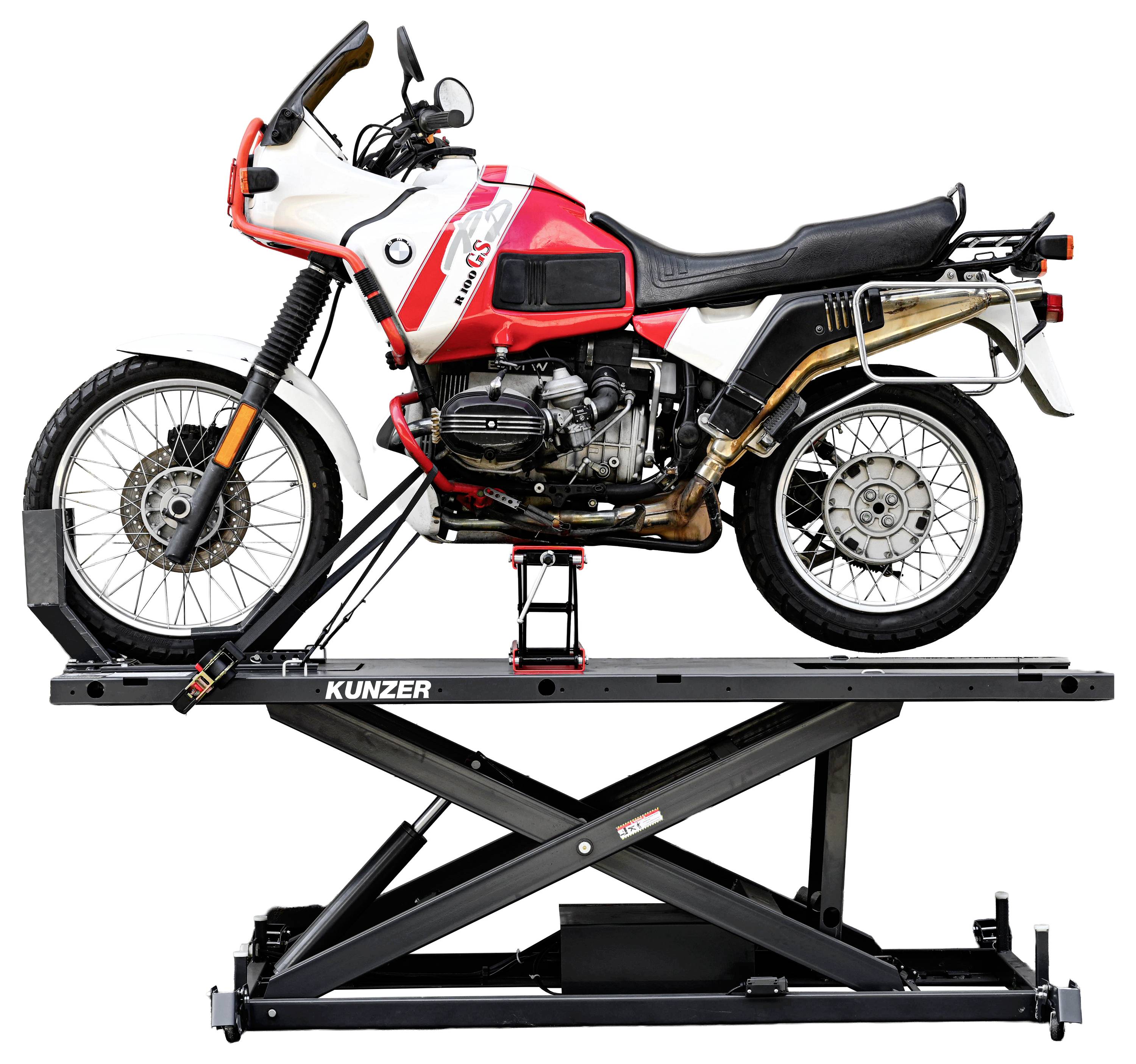

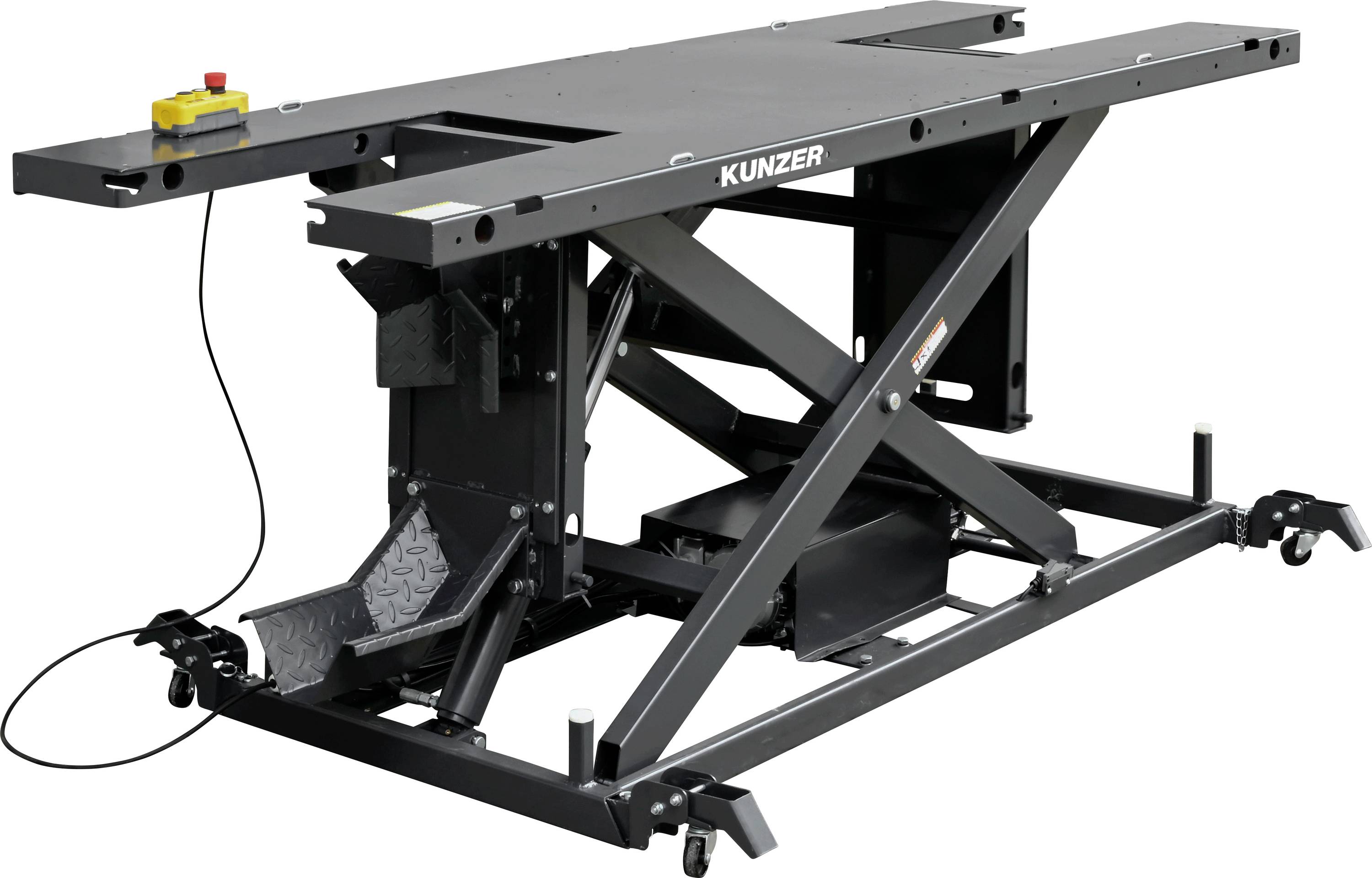

The WK 2068 electro-hydraulic motorcycle lift platform has a capacity of 682 kilograms and lifts each motorcycle to an optimum working height of up to 1.04 meters. Thanks to the adjustable surface, the stage can be adjusted individually to the wheelbase of the motorcycle. The electro-hydraulic control with magnetic control unit permits comfortable and precise lifting on working height. Even for workshops with different work stations the motorcycle lifting platform is best suitable for shunting through the removable wheel set.
This text is machine translated.
This text is machine translated.
Features
- Folding segments front/rear
- Removable wheel set
- Loading ramp
- Electro-hydraulic drive
- Magnetic operating part
- Integrated motor
- No external mounting parts and thus completely accessible
Scope of delivery
- Wheel set WK 2068-RS;2 pieces lashing strap ZG 2.5 automatic
