Buy kwb 258730 HSS Metal twist drill bit 13 mm Total length 151 mm M2 DIN 338 Cylinder shank 1 pc(s)

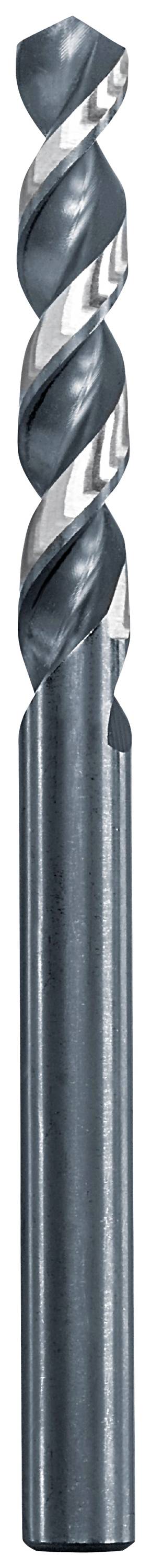

A metal milling cutter with a spiral head. Suitable for precise drilling or milling in various materials.

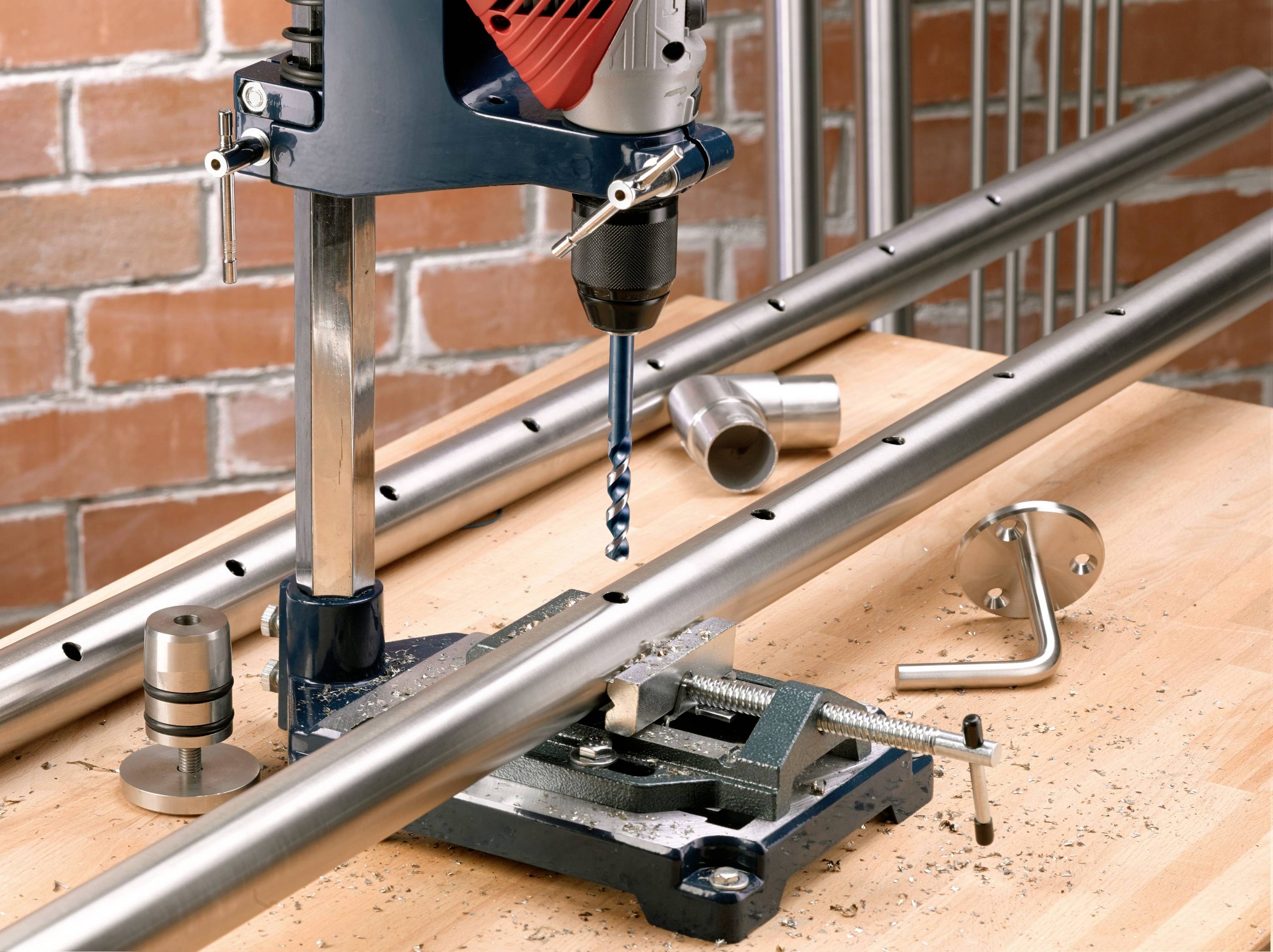

Drill machine working on metal pipe on a workbench. Metal shavings surround the cutter. Demonstrates technical work process.

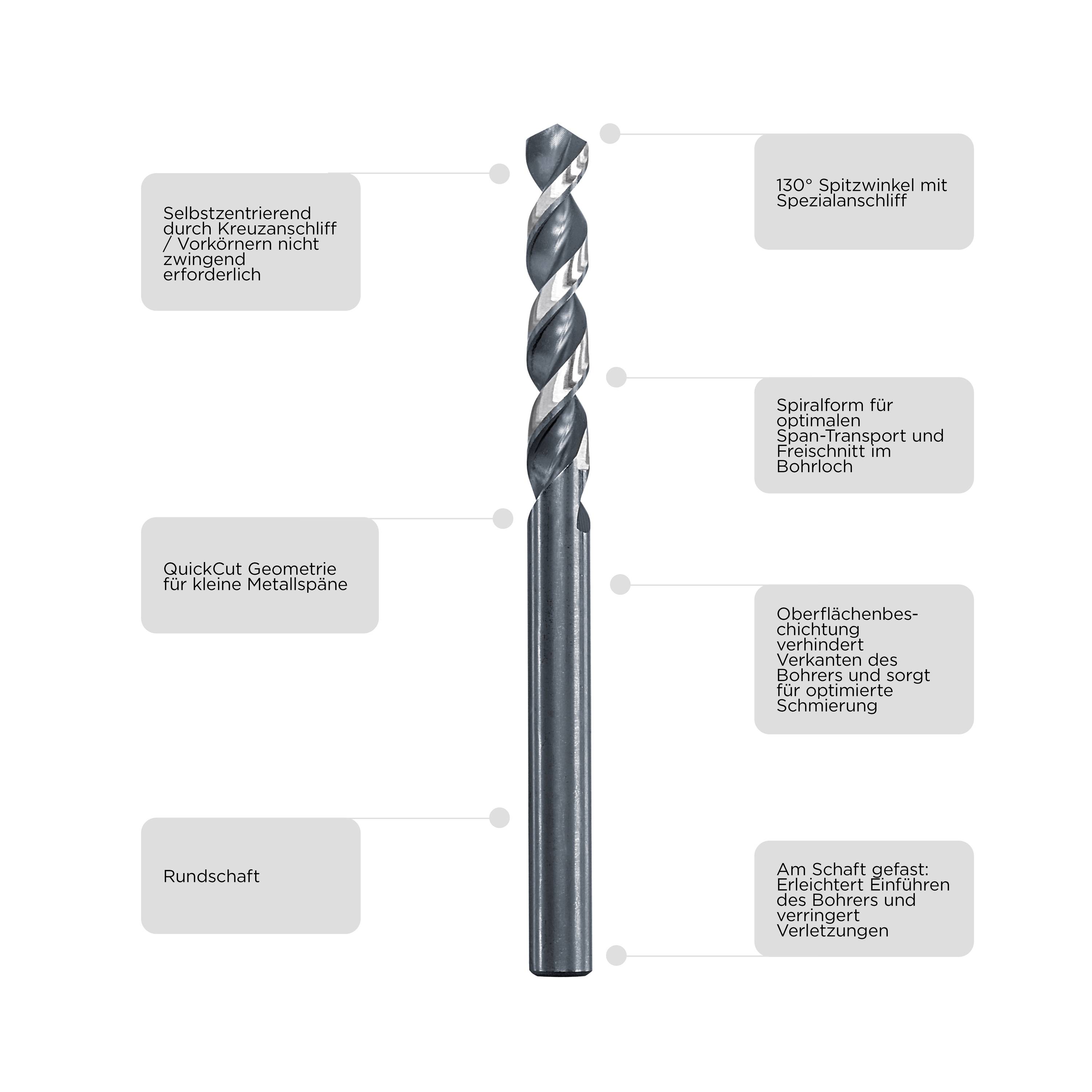

'Metal drill bits with descriptions: self-centring, 130° point angle, spiral design, specialised surface, round shank, QuickCut geometry.'

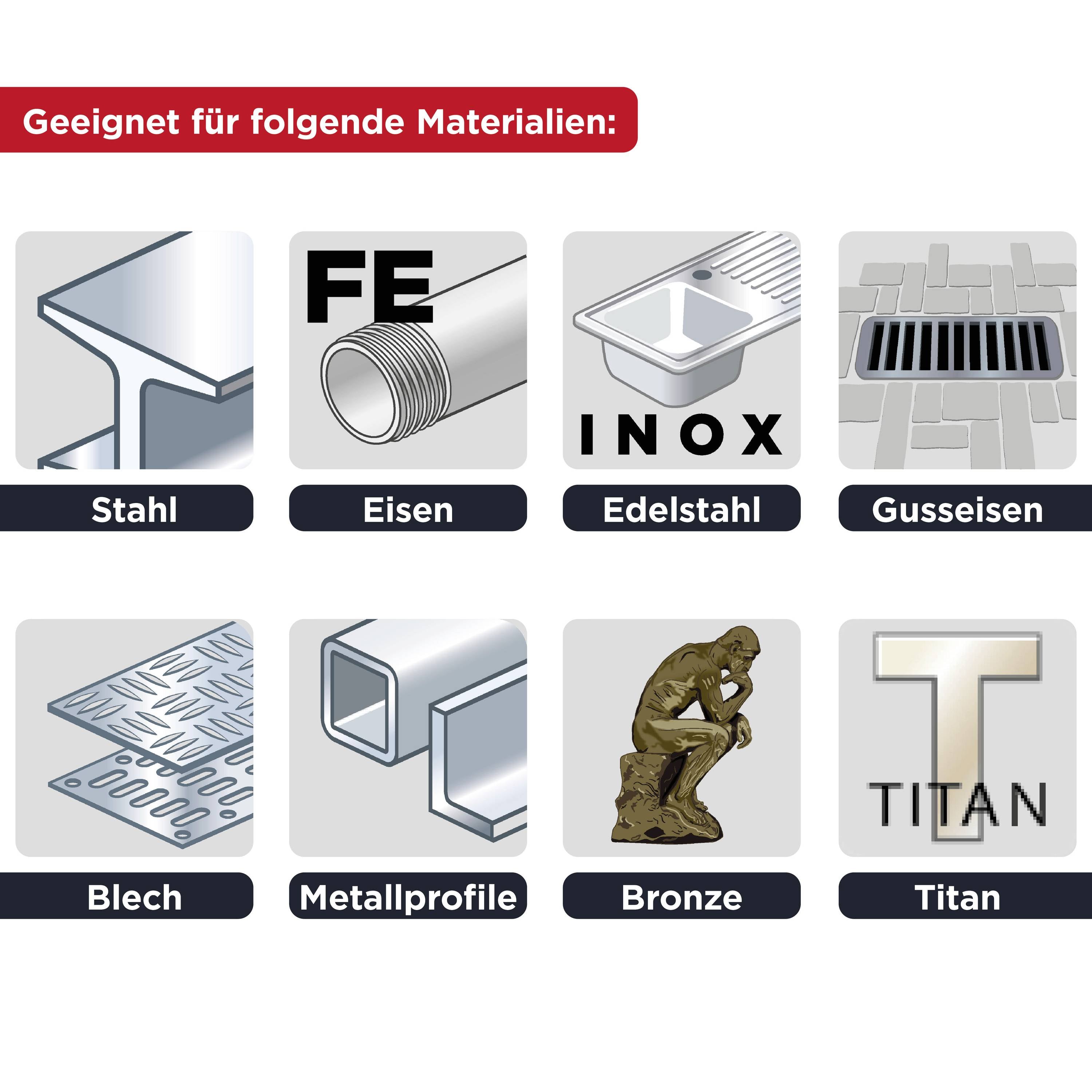

'Suitable for the following materials': Steel, Iron, Stainless Steel, Cast Iron, Sheet Metal, Metal Profiles, Bronze, Titanium; Symbols illustrate materials.

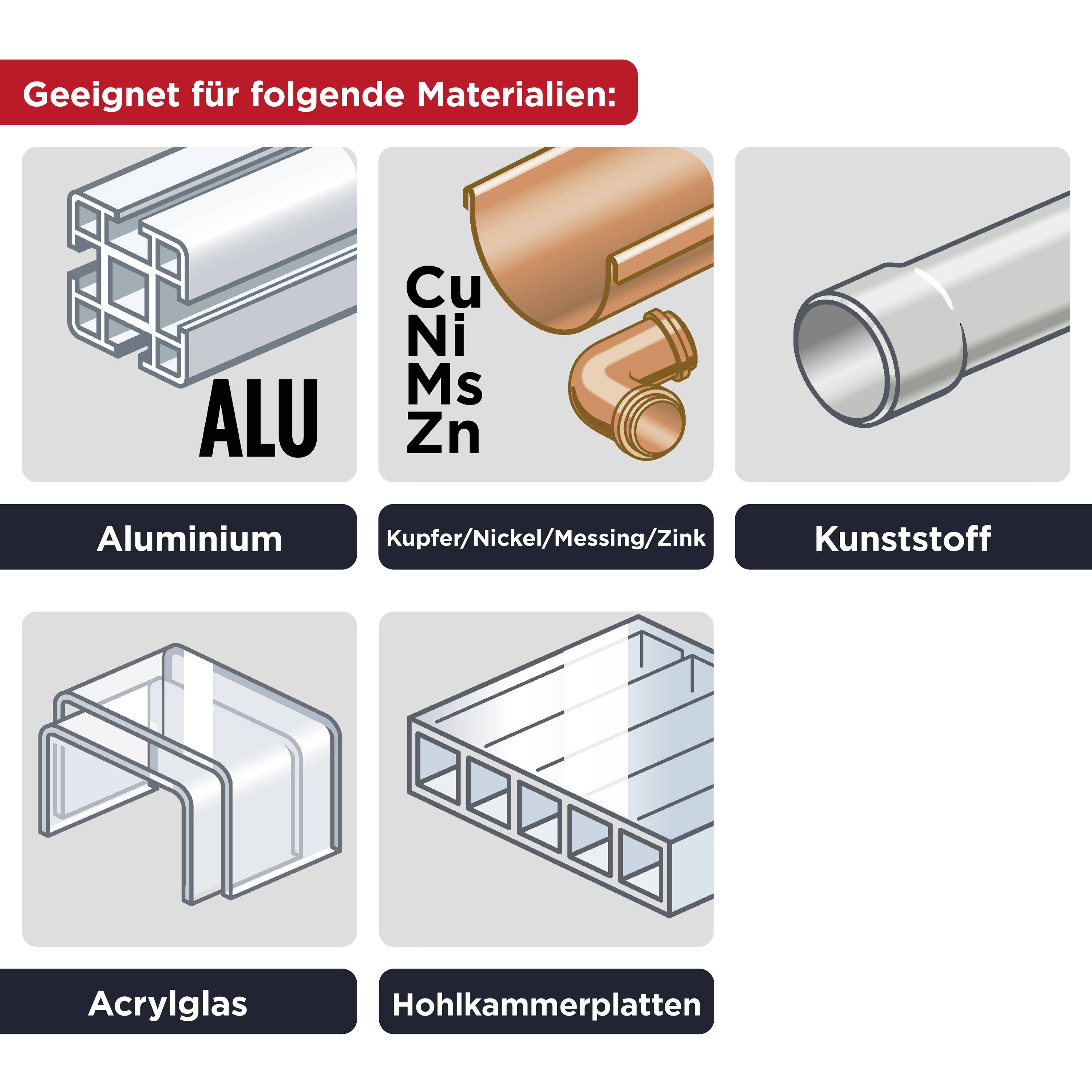

'Suitable for the following materials: aluminium, copper/nickel/brass/zinc, plastic, acrylic glass, hollow chamber boards.'

1/5

Product type

Metal twist drill bit

Drill hole Ø

13 mm

Content

1 pc(s)

Material

HSS

Material suitability

Stainless steel

Brass

Cast iron

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

Sales and shipping:

Number

Piece(s)

Total (€ 19.32 / piece)

€

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 13 mm

Tip angle: 130°

Content: 1 pc(s)

Material: HSS

Material properties: M2

Material suitability: Stainless steel
Brass
Cast iron
Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 13 mm

Working length: 78 mm

Total length: 151 mm

Weight: 128 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1917986 kwb 258730 HSS Metal twist drill bit 13 mm Total length 151 mm M2 DIN 338 Cylinder shank 1 pc(s)

Description

HSS twist drill bits, HI-NOX M2 ground, right-hand cut, helical, Color black/Blank, 130 ° point angle with special polished finish, special spir finish with "Quick Cut" geometry for small metal shavings, strengthened core and spiral shoulder, specially shaped short helical groove, extra stable, for optimum chip removal, extremely heat resistant, gives an optimum cutting action, in particular in all stainless steel places, also suitable for all types of steel, cast iron and cast steel. For force and energy-saving drilling with battery or cabled machines.

This text is machine translated.
