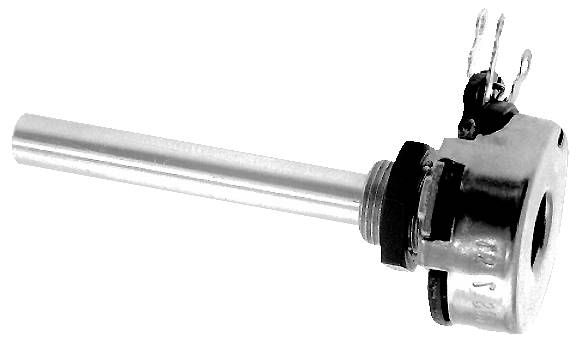

KYOCERA/AVX 3104607589 Wire-wound pot Enclosed 4 W 5 kΩ 1 pc(s)
Part number:
Item no:
Product type
Wire-wound pot
Potentiometer features
Enclosed
Resistance
5 kΩ
Resistance characteristic
linear
Power rating
4 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
Kyocera/AVX 4W wire potentiometer mono linear 5K
- 5 kΩ
- linear
Technical specifications
- ESD Packaging: No ESD
- Series AW
- Design: Horizontal
- Diameter, base 24 mm
- Length, shaft 50 mm
- Diameter, Shaft 6 mm
- Axle: Metal
- Resistance value 5 kOhm
- Resistance unit: KOhm
- Resistance value_1: 5
- Resistance tolerance: ±10 %
- Resistance curve: Linear
- Rated output: 4 W
- Max voltage 500 V
- Insulation voltage 1,000 V
- Life: 10000 cycles
- Mechanical rotation angle 300 °
- Electrical angle of rotation 280 °
- Stop strength 115 Ncm
- Torque 3.6 Ncm
- Product type
Wire-wound pot
- Potentiometer features
Enclosed
- Resistance
5 kΩ
- Resistance characteristic
linear
- Power rating
4 W
- Cut-off voltage
500 V
- Connection
Solder lug
- Mechanical angle
300°
- Electrical angle
280°
- Torque (max.)
3.6 Ncm
- Impact tolerance
115 Ncm
- Axle length
50 mm
- Axle type
Metal
- Axle Ø
6 mm
- (Ø)
24 mm
- Tolerance ±
10 %
- Content
1 pc(s)
- Type
3104607589
- Dim
(Ø) 24 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3523304 KYOCERA/AVX 3104607589 Wire-wound pot Enclosed 4 W 5 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523304 KYOCERA/AVX 3104607589 Wire-wound pot Enclosed 4 W 5 kΩ 1 pc(s)
Description
Wire wound potentiometer 4W
This text is machine translated.
This text is machine translated.
Features
- • Design: Encapsulated
- •Nominal width 24 mm
- •Solder tag connections
Scope of delivery
- 3104607589.
