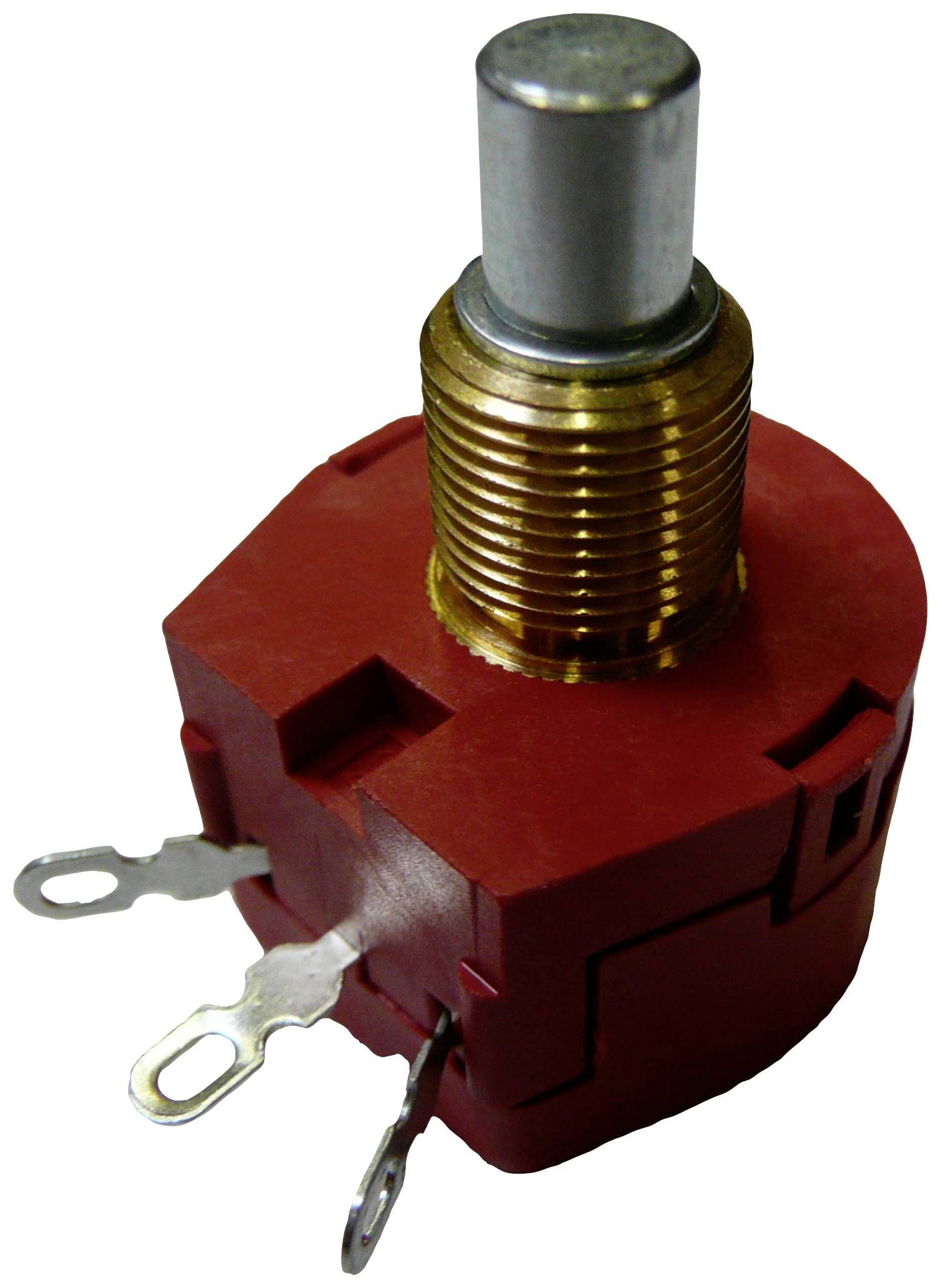

KYOCERA/AVX 3109607623 3109607623 Wire-wound pot Mono 1 W 5 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Wire-wound pot
Resistance
5 kΩ
Resistance characteristic
logarithmic
Output
Mono
Power rating
1 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
- 5 kΩ
- logarithmic
Technical specifications
- Product type
Wire-wound pot
- Resistance
5 kΩ
- Resistance characteristic
logarithmic
- Output
Mono
- Power rating
1 W
- Cut-off voltage
300 V
- Connection
Solder tag
- Mechanical angle
285°
- Electrical angle
265°
- Actuating force
3 Ncm
- Impact tolerance
100 Ncm
- Axle length
25 mm
- Axle Ø
6 mm
- Thread size
M10
- Thread length
10 mm
- Case dimensions
23 mm
- Length
17.5 mm
- (Ø)
23 mm
- Min. temperature
-40 °C
- Max. temperature
+90 °C
- Tolerance ±
0.1 %
- Content
1 pc(s)
- Type
3109607623
- Dim
(Ø x L) 23 mm x 17.5 mm
Documents & Downloads
Datasheet
Datasheet 2827057 KYOCERA/AVX 3109607623 3109607623 Wire-wound pot Mono 1 W 5 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2827057 KYOCERA/AVX 3109607623 3109607623 Wire-wound pot Mono 1 W 5 kΩ 1 pc(s)
Description
Scope of delivery
- 3109607623.
