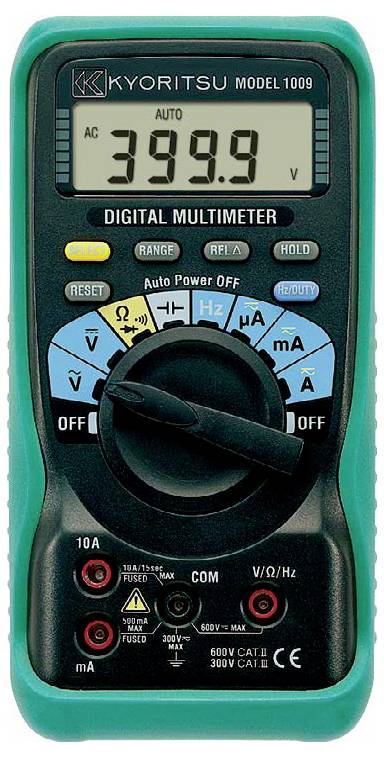

Kyoritsu KEW 1009 Handheld multimeter Digital Capacitance testing, Continuity tester CAT III 300 V, CAT II 600 V Display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Kyoritsu KEW 1009 digital multimeter
- Display range of 4000 digits
- Automatic and manual range selection
- 400MV~600V AC/DC
- 400ΜA~10A AC/DC
- 400Ohm~40MOhm
- Capacitance 40nF~100µF
- Frequency 5.12Hz~10MHz
Technical specifications
- Relative measurement (REL)
- Auto range/manual range
- Data hold
- Diode/continuity
- Auto power-off
- Duty cycle: 0.1% to 99.9% (pulse width/pulse duration)
- Continuity test: Acoustic signal under approx. 50 Ω ± 30 Ω
- Diode test: Test voltage approx. 1.5 V.
- Power-saving function: The device turns off automatically after 30 minutes of inactivity
- Fuses: 0.5 A / 600 V and 10 A / 600 V (both ceramic)
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
400 Ω to 40 MΩ
- Reading range - capacity
40 nF to 100 µF
- Frequency reading range
5.12 Hz to 10 MHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.6 %
- Measurement type (details)
Average
- Frequency range
40 -400 Hz
- Power supply (details)
3 V
- Height
82 mm
- Width
161 mm
- Length
50 mm
- Weight
280 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
CAT II 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
KEW 1009
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 50 x 161 x 82 mm
- Features
Capacitance testing
Continuity tester
Documents & Downloads
Datasheet
Datasheet 3642337 Kyoritsu KEW 1009 Handheld multimeter Digital Capacitance testing, Continuity tester CAT III 300 V, CAT II 600 V Display
User & Safety Instructions
User & Safety Instructions 3642337 Kyoritsu KEW 1009 Handheld multimeter Digital Capacitance testing, Continuity tester CAT III 300 V, CAT II 600 V Display
Description
Kyoritsu digital multimeter
This text is machine translated.
This text is machine translated.
Scope of delivery
- Multimeters, measuring leads (7066A)
- 2x AA batteries
- Replacement fuse (in the device)
- User manual
