Kyoritsu KEW 4105A-H Earth ground meter 20 MΩ (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Kyoritsu KEW 4105A-H earth tester, digital
- 0-1999 Ω
- 0-200V AC (50.60Hz)
- Accuracy 1%
- Automatic warning if the resistance of the auxiliary earth spikes exceeds the tolerance
- Hard case model
Technical specifications
- Complies with IEC 61010-1, IEC 61557
- Dust and drip-water protection according to IEC 60529
- Product type
Earth ground meter
- Reading range - voltage
0 - 200 V AC
Manufacturer's standards (no certificate)
- Reading range - resistance
0 – 20 Ω / 0 – 200 Ω/ 0 – 2000 Ω
IP67
- Power supply (details)
9 V DC
- Dim
(L x W x H) 105 x 158 x 70 mm
- Weight
540 g
- Display
LCD
- Content
1 pc(s)
- Insulation resistance (max.)
20 MΩ
- Insulation resistance range
20 MΩ (max)
- Reading category
CAT III 300 V
- Measuring type
Ground spike
- Width
158 mm
- Height
70 mm
- Length
105 mm
- Type
KEW 4105A-H
Documents & Downloads
Datasheet
Datasheet 3642372 Kyoritsu KEW 4105A-H Earth ground meter 20 MΩ (max)
User & Safety Instructions
User & Safety Instructions 3642372 Kyoritsu KEW 4105A-H Earth ground meter 20 MΩ (max)
Description

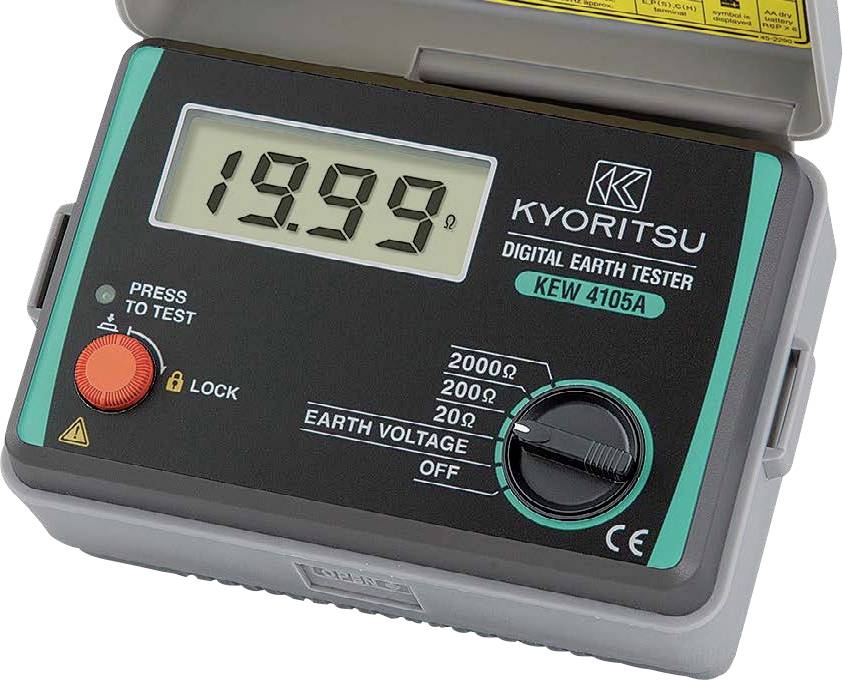

Kyoritsu digital earth tester KEW 4105A-H
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test leads (red 20 m, yellow 10 m, green 5 m)
- Auxiliary earth spikes
- Measurement leads for simplified measurement
- Batteries (6x AA)
- Carry strap
- Hard case
- User manual
