Kyoritsu KEW 4105DL Earth ground meter 100 MΩ (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 626.05 / piece)
€ 626.05
plus VAT.
14-day return policy included
Highlights & Details

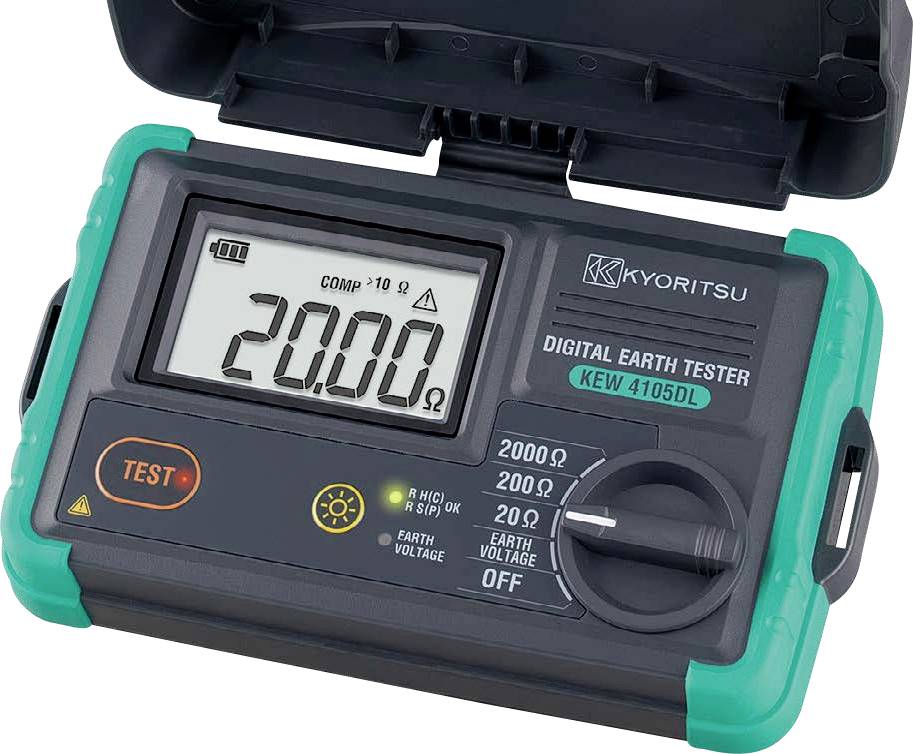

Kyoritsu KEW 4105DL digital earthing tester
- 0-20 Ω/0-200 Ω/0-2000 Ω
- 0-200V AC (50.60Hz)
- Waterproof design (IP67)
- 3-pole and 2-pole earth resistance measurement
- LED for monitoring
- LCD-display with background lighting
- Cable rolling set model
Technical specifications
- Auto Power Off function
- Measuring frequency 825 Hz (avoids interferences through mains frequency)
- Product type
Earth ground meter
- Reading range - voltage
0 - 300 V AC
Manufacturer's standards (no certificate)
- Reading range - resistance
0-20 Ω/0-200 Ω/0-2000 Ω
IP67
- Power supply (details)
9 V DC
- Dim
(L x W x H) 188 x 121 x 59 mm
- Weight
925 g
- Display
LCD
- Content
1 pc(s)
- Insulation resistance (max.)
100 MΩ
- Insulation resistance range
100 MΩ (max)
- Calibration service
Tested according to IEC 61557-1, -5
- Reading category
CAT III 300 V
- Measuring type
Ground spike
- Width
121 mm
- Height
59 mm
- Length
188 mm
- Type
KEW 4105DL
Documents & Downloads
Datasheet
Datasheet 3642373 Kyoritsu KEW 4105DL Earth ground meter 100 MΩ (max)
User & Safety Instructions
User & Safety Instructions 3642373 Kyoritsu KEW 4105DL Earth ground meter 100 MΩ (max)
Description
Kyoritsu digital earthing tester KEW 4105DL
This text is machine translated.
This text is machine translated.
Scope of delivery
- Measuring instrument, test leads (red 20m, yellow 10m, green 5m),
- Auxiliary earth (2 pcs.)
- Probes
- Alligator clips
- Carry strap
- 6 x 1.5 V AA batteries (LR6)
- Hard case
- User manual
