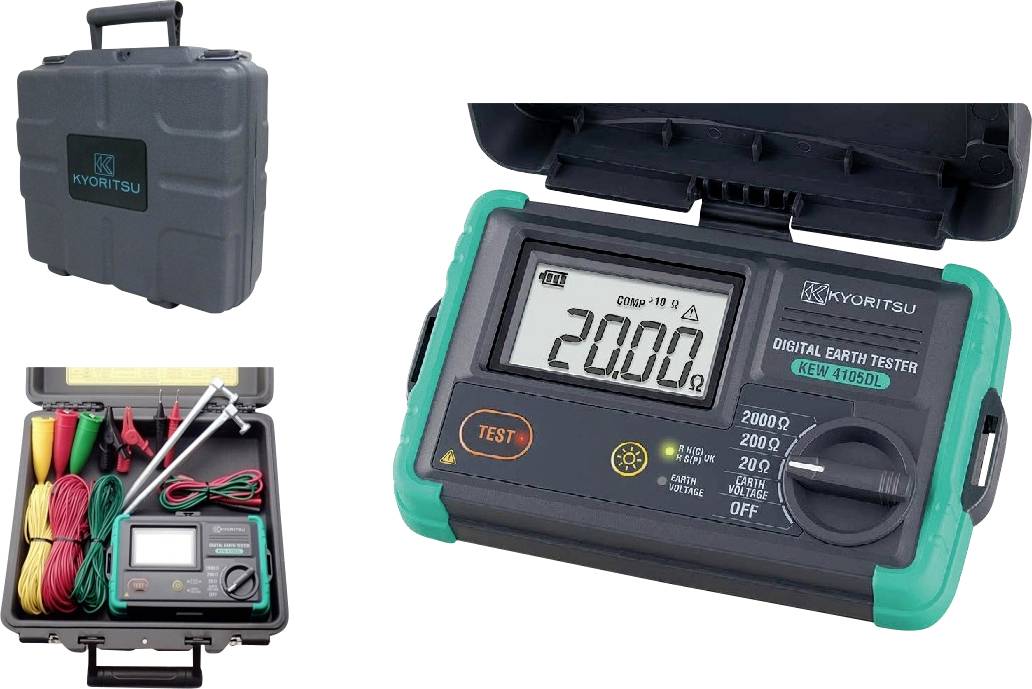

Kyoritsu KEW 4105DL-H Earth ground meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 587.39 / piece)
€ 587.39
plus VAT.
14-day return policy included
Highlights & Details
Kyoritsu KEW 4105DL-H earth tester digital
- 0-20 Ω/0-200 Ω/0-2000 Ω
- 0-200V AC (50.60Hz)
- Waterproof design (IP67)
- 3-pole and 2-pole earth resistance measurement
- LED for monitoring
- LCD-display with background lighting
- (Hard Case Model)
Technical specifications
- Complies with IEC 61010-1, IEC 61557-1/-5
- Product type
Earth ground meter
- Reading range - voltage
0 - 300 V AC
- Continuity testing
Acoustic signal for resistance values over 2 Ω
Manufacturer's standards (with certificate)
- Reading range - resistance
0 – 2000 Ω (automatic range selection: 20 / 200 / 2000 Ω)
IP67
- Power supply (details)
9 V DC
- Dim
(L x W x H) 188 x 121 x 59 mm
- Weight
925 g
- Display
LCD
- Content
1 pc(s)
- Calibration service
Factory certificate included in delivery
- Reading category
CAT IV
CAT III 150 V
- Measuring type
Ground spike
- Width
121 mm
- Height
59 mm
- Length
188 mm
- Type
KEW 4105DL-H
Documents & Downloads
Datasheet
Datasheet 3642374 Kyoritsu KEW 4105DL-H Earth ground meter
User & Safety Instructions
User & Safety Instructions 3642374 Kyoritsu KEW 4105DL-H Earth ground meter
Description
Kyoritsu digital earthing tester KEW 4105DL-H
This text is machine translated.
This text is machine translated.
Scope of delivery
- measuring instrument
- Test leads (red 20 m, yellow 10 m, green 5 m)
- Auxiliary earth spikes
- Hard case
- 6 x 1.5 V AA batteries (LR6)
- Carry strap
- Calibration certificate
