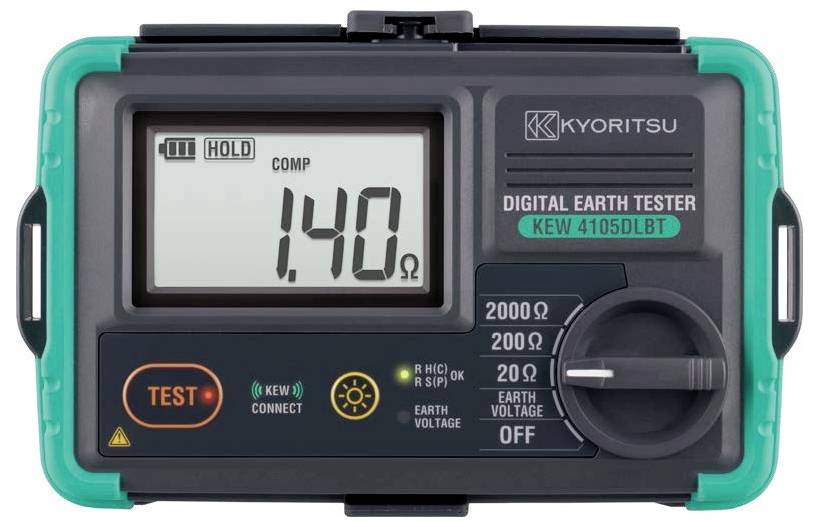

Kyoritsu KEW 4105DLBT-H Earth ground meter 100 MΩ (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 626.05 / piece)
€ 626.05
plus VAT.
14-day return policy included
Highlights & Details
Kyoritsu KEW 4105DLBT-H earth tester digital Bluetooth
- 0-20 Ω/0-200 Ω/0-2000 Ω
- 0-200V AC (50.60Hz)
- Waterproof design (IP67)
- 3-pole and 2-pole earth resistance measurement
- LED for monitoring
- LCD-display with background lighting
- (Hard Case Model)
Technical specifications
- Filter function for reducing ground disturbances
- Automatic warning in case of Hohem auxiliary earth resistance
- Earth resistance testing at approximately 825 Hz
- Product type
Earth ground meter
- Interfaces
Bluetooth®
- Reading range - voltage
0 - 300 V AC
Manufacturer's standards (with certificate)
- Reading range - resistance
0-20 Ω/0-200 Ω/0-2000 Ω
IP67
- Power supply (details)
9 V DC
- Dim
(L x W x H) 188 x 121 x 59 mm
- Weight
925 g
- Display
LCD
- Content
1 pc(s)
- Insulation resistance (max.)
100 MΩ
- Insulation resistance range
100 MΩ (max)
- Reading category
CAT II 300 V
CAT III 150 V
CAT IV
- Measuring type
Ground spike
- Width
121 mm
- Height
59 mm
- Length
188 mm
- Type
KEW 4105DLBT-H
Documents & Downloads
Datasheet
Datasheet 3642375 Kyoritsu KEW 4105DLBT-H Earth ground meter 100 MΩ (max)
User & Safety Instructions
User & Safety Instructions 3642375 Kyoritsu KEW 4105DLBT-H Earth ground meter 100 MΩ (max)
Description
Kyoritsu digital earthing tester KEW 4105DLBT-H
This text is machine translated.
This text is machine translated.
Scope of delivery
- measuring instrument
- Earth spikes (2 PCs.)
- Test leads (red-20m, yellow-10m, green-5m)
- Precision measuring probes
- Hard case
- Batteries (6x AA)
- Carry strap
- Calibration certificate
- User manual
