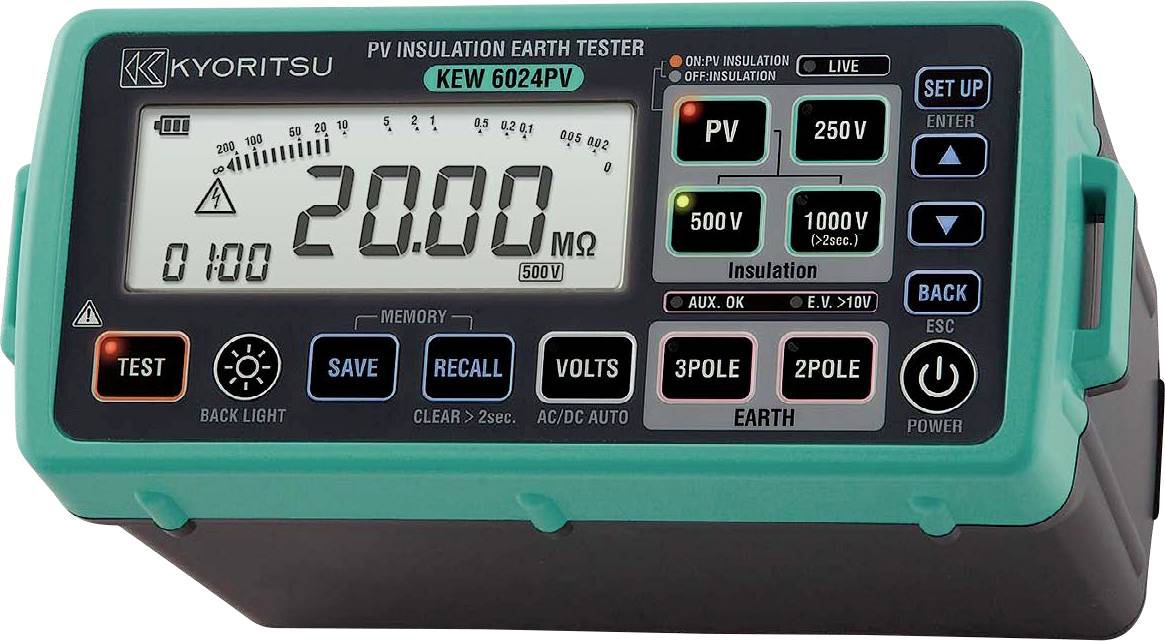

Kyoritsu KEW 6024PV PV tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,046.22 / piece)
€ 1,046.22
plus VAT.
14-day return policy included
Highlights & Details
Kyoritsu KEW 6024PV insulation tester
- PV INSULATION 500V/1000V
- INSULATION 250V/500V/1000V
- Ground resistance measurement range 20/200/2000Ohm
- Voltage AC 5 - 600 V (45 - 65Hz) DC 5 - 1000 V.
- Memory function up to 1000 data
- Backlight
Technical specifications
- Internal memory for up to 1000 measurements
- Measuring range earthing (max.): Up to 2000 Ω
- Insulation measuring range (max.): Up to 2000 MΩ (at 500 V / 1000 V test voltage)
- Product type
PV tester
- Reading type
Insulation resistance
Voltage
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 133 x 184 x 84 mm
- Display
LCD
- Weight
900
- Calibration service
Factory calibration (ISO/DAkkS optional)
- Features
Data logger
- Reading category
CAT IV 300 V
CAT III 600 V
- Width
184 mm
- Height
84 mm
- Length
133 mm
- Interfaces
USB
Documents & Downloads
Datasheet
Datasheet 3642394 Kyoritsu KEW 6024PV PV tester
User & Safety Instructions
User & Safety Instructions 3642394 Kyoritsu KEW 6024PV PV tester
Description
Kyoritsu PV insulation earth tester KEW 6024PV
This text is machine translated.
This text is machine translated.
Features
- Supports both 3-wire (precision) and 2-wire (simplified) methods
- Complies with IEC 61010-1, IEC 61557-1, -2, -5, -10
- Automatically detects AC/DC voltages up to 600 V.
- Allows safe measurement even when the PV system is energized (strings do not need to be shorted)
Scope of delivery
- Measuring leads 7196A (test lead with remote control button)
- Earthing set 7244 (measuring leads and ground spikes)
- Software/Data: 8302 (Magnetic Adapter + KEW Report Software via Download)
- Shoulder strap (9151)
- Cordura bag (9151)
- Batteries (6 x AA)
