Kyoritsu KEW Mate 2012 RA Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (max.)
600 V
- A DC reading range (max.)
120 A
- Amperage reading range AC (max.)
120 A
- Reading range - resistance
600 Ω - 60 MΩ
- Reading range - capacity
400 nF - 40 µF
- Frequency reading range
100 Hz - 300 kHz
- Measurement type (details)
True RMS
- Power supply (details)
2 x 1.5 V batteries type AAA
- Height
27 mm
- Width
92 mm
- Length
128 mm
- Weight
220 g
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
CAT III 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
KEW Mate 2012 RA
- Display
Digital
- Dim
(L x W x H) 128 x 92 x 27 mm
- Opening range of current clamps
12 mm
FALSE
Other
Documents & Downloads
Datasheet
Datasheet 1893093 Kyoritsu KEW Mate 2012 RA Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V
Datasheet 1893093 Kyoritsu KEW Mate 2012 RA Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V
User & Safety Instructions
User & Safety Instructions 1893093 Kyoritsu KEW Mate 2012 RA Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V
Description

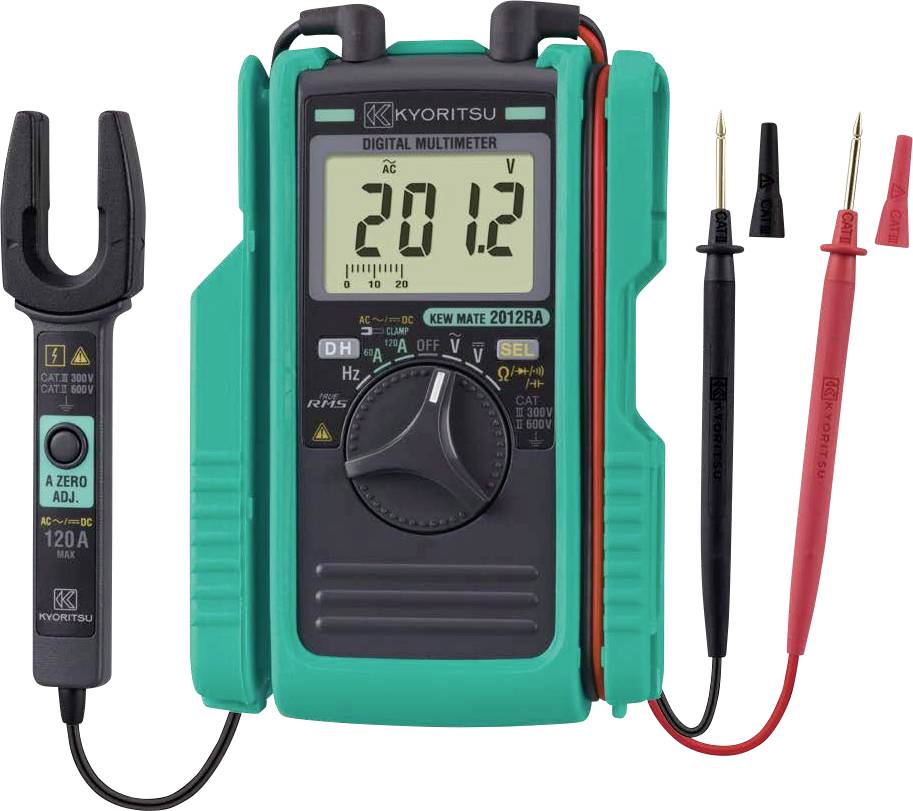

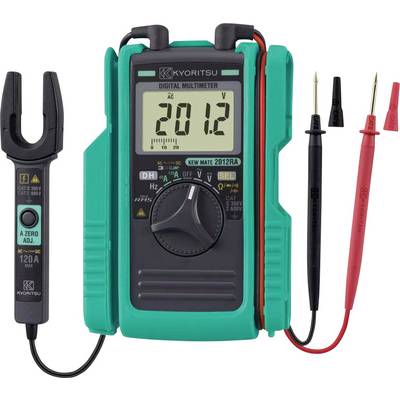

Digital multimeter with true RMS and analogue bar and current pliers with open clip for cable diameter up to 12 mm.
This text is machine translated.
This text is machine translated.
Features
- Continuity and diode test
- Data hold function
Scope of delivery
- KEW MATE with test lead
- Operating instructions
- Clip-on ammeter adapter
- Holster
