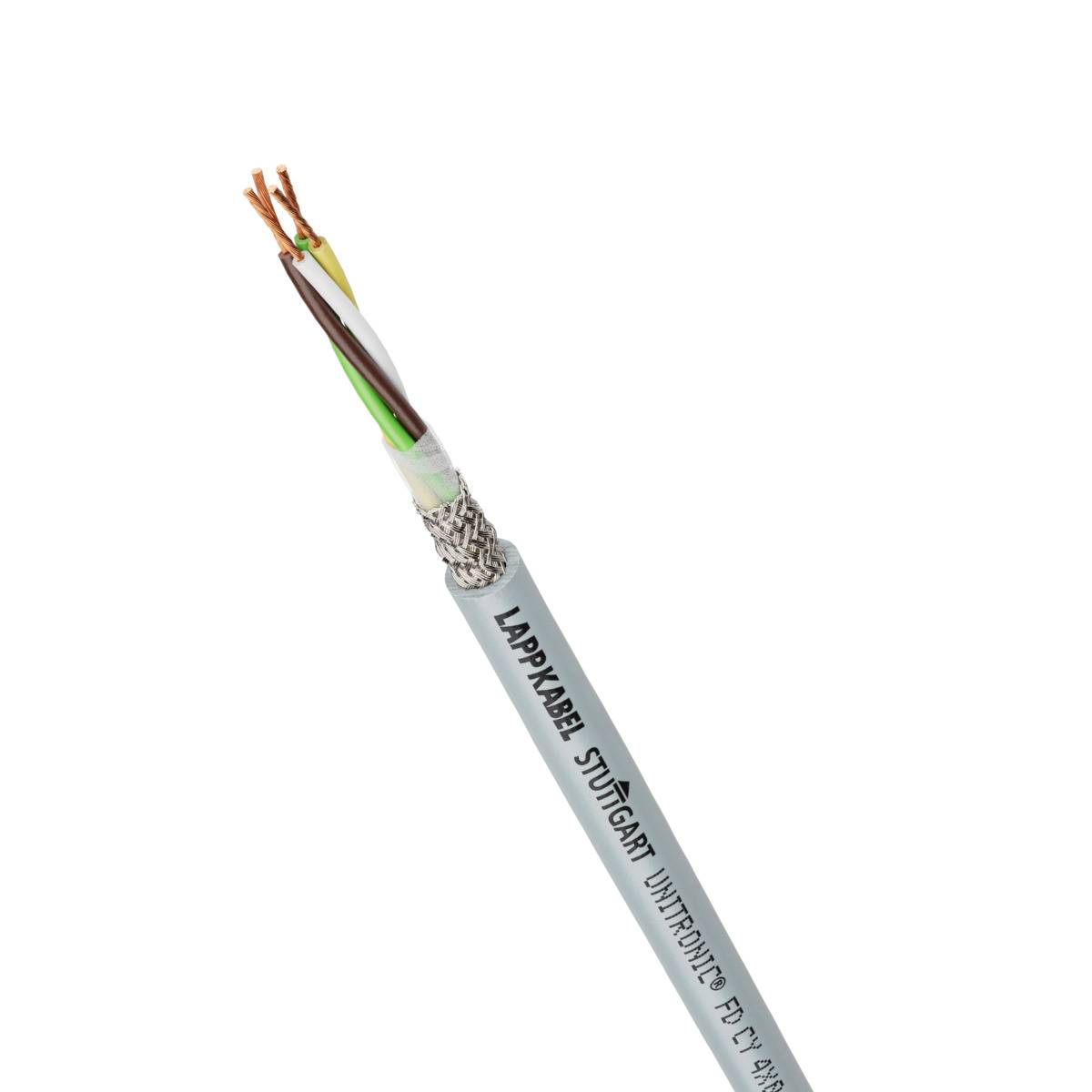

Image similar
Image similar
LAPP 0027440/100 Data transfer cable UNITRONIC® FD CY 2 x 0.34 mm² Grey 100 m
EAN:
Part number:
Item no:
Product type
Data transfer cable
No. of leads
2 x
Cross section (each core)
0.34 mm²
Cable features
Shielded
Flame-retardant
Suitable for drag chains
Cable type
UNITRONIC® FD CY
Datasheet (PDF)
Number
Total (1 m = € 1.93)
€ 193.27
plus VAT.
14-day return policy included
Technical specifications
- Product type
Data transfer cable
- Cable type
UNITRONIC® FD CY
- No. of leads
2 x
- Cross section (each core)
0.34 mm²
- Cross section
2 x 0.34 mm²
- Cable features
Shielded
Flame-retardant
Suitable for drag chains
- Outside Ø
5.30 mm
- Factory colour
Grey
- Content
100 m
- Test voltage
1500 V
- Bend radius (no. of ODs for fixed installation)
4
- Bend radius (no. of ODs for flexible installation)
7.5
- Packaged
Yes
- Sold per metre
No
- Shielded
Yes
- Manufacturer part #
0027440/100
- Insulation material
PVC
- Wire ID code
DIN 47100
- Core layout
Bare stranded conductor, extra-fine strand to VDE 0295,
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+80 °C
- Certification marks
Flame-resistant according to IEC 60332-1-2
- Type
Lapp Kabel & Leitung
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1542825 LAPP 0027440/100 Data transfer cable UNITRONIC® FD CY 2 x 0.34 mm² Grey 100 m
User & Safety Instructions
User & Safety Instructions 1542825 LAPP 0027440/100 Data transfer cable UNITRONIC® FD CY 2 x 0.34 mm² Grey 100 m
Description
Automated manufacturing processes require data lines of ever higher flexibility, stability and good shielding. This highly flexible data cable with tinned copper braid is very well suited for using cable carriers. The PVC outer sheath prevents a mutual to stick together (adhesion) several wires in the chain.
