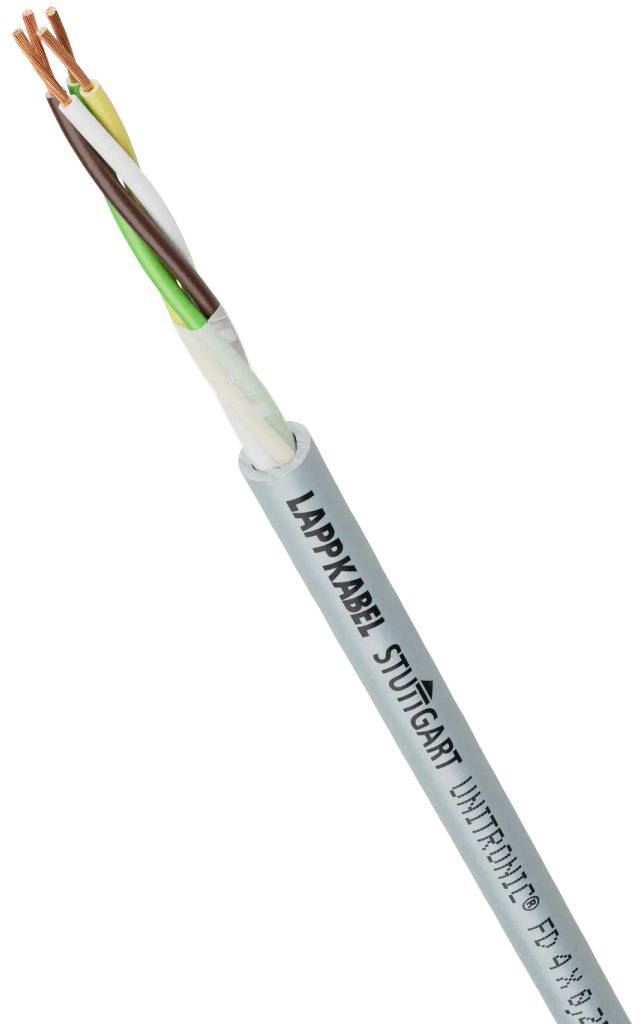

LAPP 0027855/100 Data cable UNITRONIC® FD 2 x 0.25 mm² Grey 100 m
EAN:
Part number:
Item no:
Product type
Data cable
No. of leads
2 x
Cross section (each core)
0.25 mm²
Cable features
Suitable for drag chains
Cable type
UNITRONIC® FD
Datasheet (PDF)
Technical specifications
- Product type
Data cable
- Cable type
UNITRONIC® FD
- No. of leads
2 x
- Cross section (each core)
0.25 mm²
- No. of leads (part 2)
2 x
- Cross section
2 x 0.25 mm²
- Cable features
Suitable for drag chains
- Outside Ø
4 mm
- Factory colour
Grey
- Content
100 m
- Sold per metre
Yes
- Halogen-free
No
- Manufacturer part #
0027855/100
- Insulation material
Polyvinyl chloride
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
100 m
- Type
UNITRONIC® FD 2x0,25
FALSE
0.25 mm²
Polyvinyl chloride (PVC)
Colour
According to IEC/EN 60332-1-2
Grey
Copper
Polyvinyl chloride (PVC)
-40-80 °C
2
FALSE
FALSE
4.3 mm
FALSE
Bare
21.5 mm
21.5 mm
12.9 mm
Other
Other
Round
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3357225 LAPP 0027855/100 Data cable UNITRONIC® FD 2 x 0.25 mm² Grey 100 m
User & Safety Instructions
User & Safety Instructions 3357225 LAPP 0027855/100 Data cable UNITRONIC® FD 2 x 0.25 mm² Grey 100 m
Description
UNITRONIC ® FD 2x0.25 data cable low frequency; 2X0.25; conductor color code: DIN 47100; PVC; drag chain
