LAPP 0036933/500 Drag chain cable 2 x 0.5 mm² 500 m
EAN:
Part number:
Item no:
Product type
Drag chain cable
No. of leads
2 x
Cross section (each core)
0.5 mm²
Cross section
2 x 0.5 mm²
Outside Ø
8.4 mm
Datasheet (PDF)
Technical specifications
- Product type
Drag chain cable
- No. of leads
2 x
- Cross section (each core)
0.5 mm²
- Cross section
2 x 0.5 mm²
- Outside Ø
8.4 mm
- Content
500 m
- Nominal voltage
30 V
- Manufacturer part #
0036933/500
- Type
ÖLFLEX® SERVO FD 798CP (3x2x0,25+2x0,5)
0.5 mm²
Colour
30 V
Green
Copper
Polyurethane (PUR)
-50-90 °C
2
8.4 mm
FALSE
FALSE
FALSE
Tinned
Other
63.0 mm
63.0 mm
33.6 mm
Polypropylene (PP)
Other
Round
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3363725 LAPP 0036933/500 Drag chain cable 2 x 0.5 mm² 500 m
User & Safety Instructions
User & Safety Instructions 3363725 LAPP 0036933/500 Drag chain cable 2 x 0.5 mm² 500 m
Description

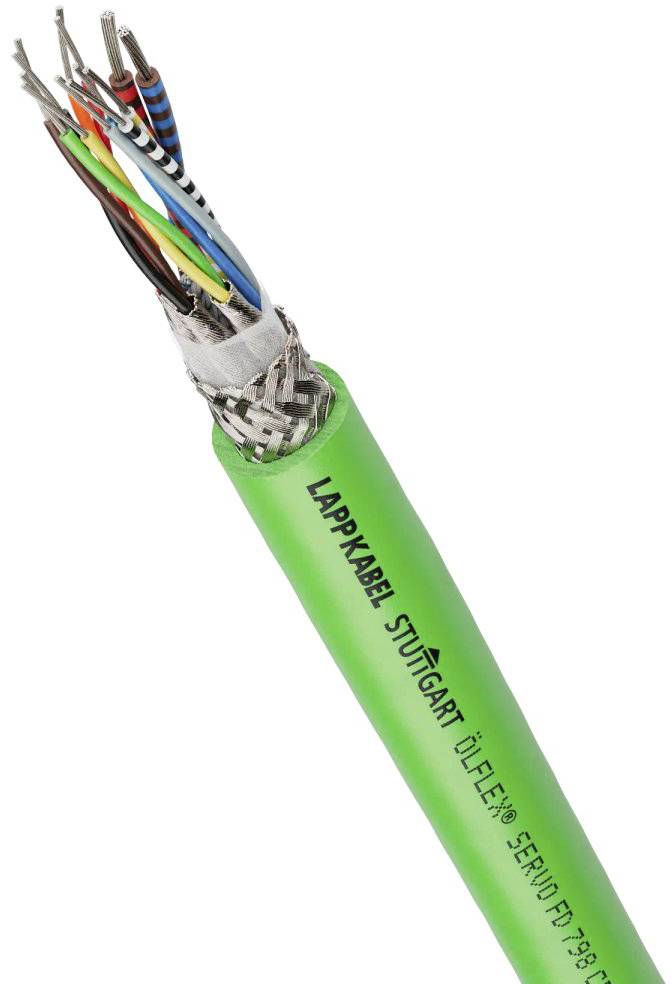

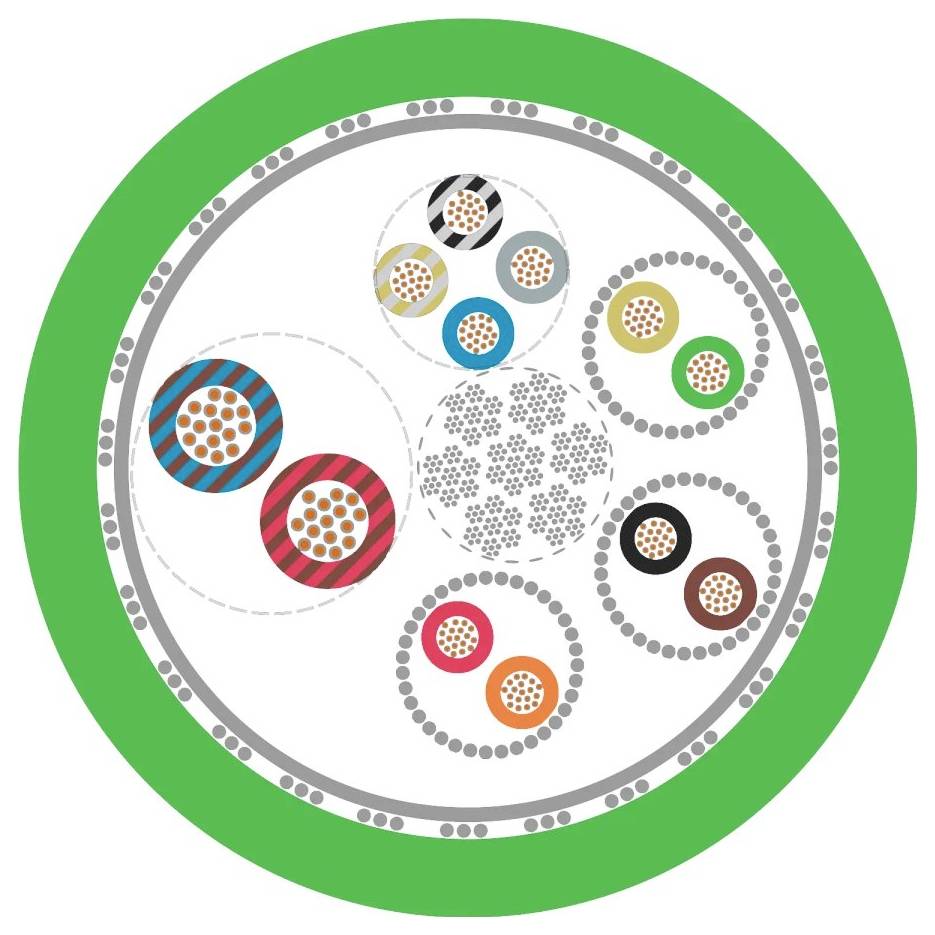

ÖLFLEX® SERVO FD 798CP (3x2x0.25+2x0.5) encoder cable; (3x2x0.25+2x0.5); extended line; 30 V; PUR; Shielded; UL recognized; Drag chain
