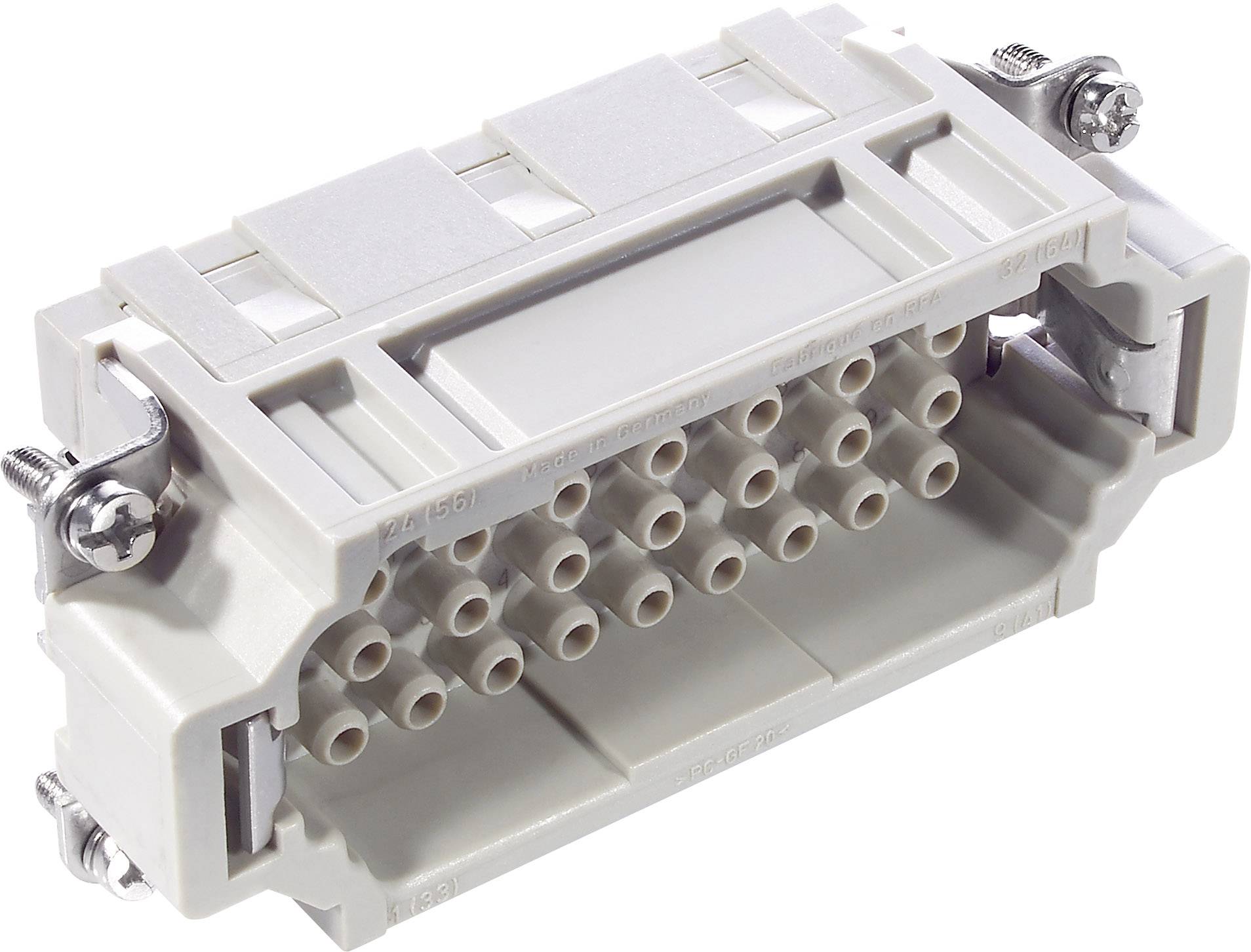

LAPP 10184400 Pin inset EPIC® H-EE 32 Total number of pins 32 + PE 5 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
EPIC® H-EE 32
Connection
Crimp
Features
for machined contacts
Number of pins
32
Datasheet (PDF)
Technical specifications
- Product type
Pin inset
- Series
EPIC® H-EE 32
- Features
for machined contacts
- Connection
Crimp
- Number of pins
32
- Total no. of pins
32 + PE
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
4 mm²
- Rated surge voltage
6 kV
- Rated voltage
IEC: 500 V
UL: 600 V
CSA: 600 V
- Test current
IEC: 16 A
UL: 16 A
CSA: 16 A
- Content
5 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1023570 LAPP 10184400 Pin inset EPIC® H-EE 32 Total number of pins 32 + PE 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1023570 LAPP 10184400 Pin inset EPIC® H-EE 32 Total number of pins 32 + PE 5 pc(s)
Description
The H-EE inserts for turned contacts for high number of poles in a confined space. For mounting in H-B housing.
