Buy LAPP 1030243/1000 Data transfer cable UNITRONIC® LiYY 8 x 0.34 mm² Black 1000 m

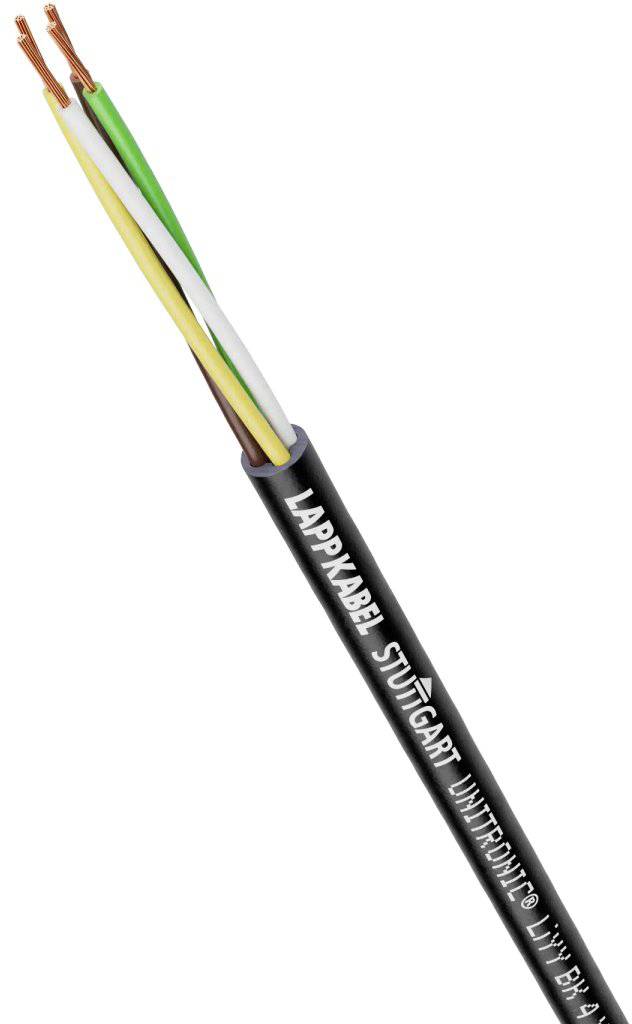

Cable with four colour-coded internal conductors: yellow, green, white, copper-coloured. Labelled with 'Lapp Kabel, Stuttgart Unitronic'.

Image similar

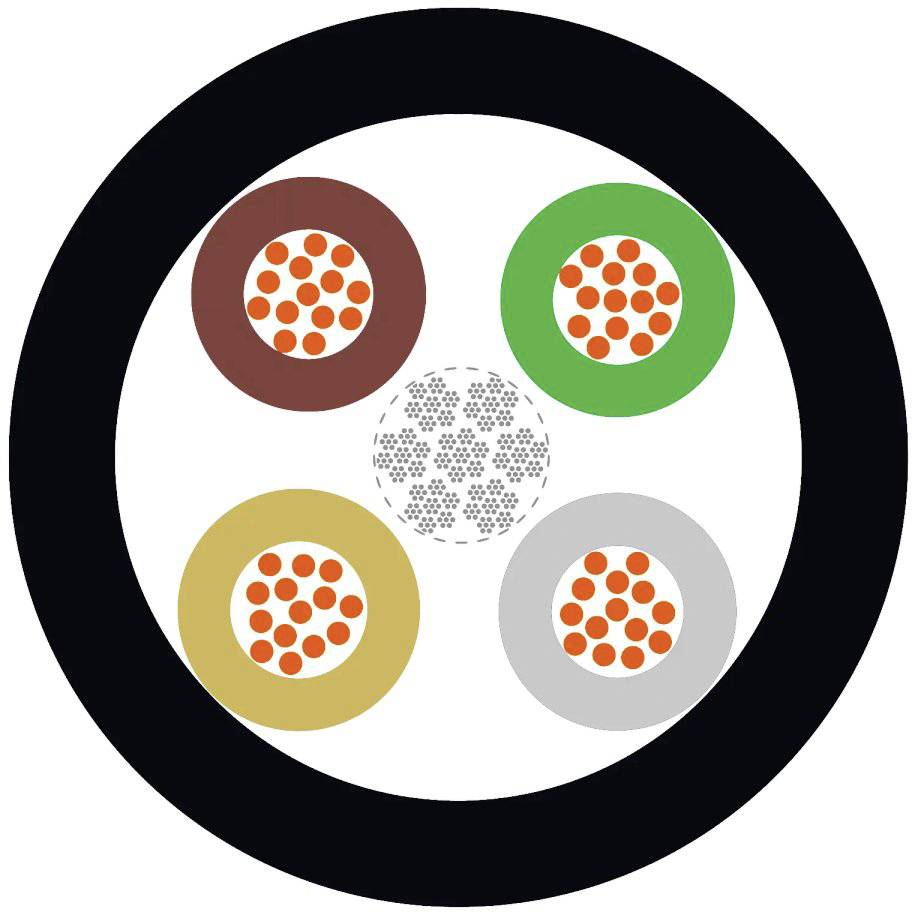

'Cross-section of a multi-core cable with four coloured conductors and a central grey area serving as the earth conductor.'

1/2

Image similar

Product type

Data transfer cable

No. of leads

8 x

Cross section (each core)

0.34 mm²

Cable features

Flexible

Cable type

UNITRONIC® LiYY

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® LiYY

No. of leads: 8 x

Cross section (each core): 0.34 mm²

Cross section: 8 x 0.34 mm²

Cable features: Flexible

Outside Ø: 7 mm

Factory colour: Black

Content: 1000 m

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 10

Packaged: Yes

Sold per metre: No

Shielded: No

Manufacturer part #: 1030243/1000

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® LiYY 8x0,34 BK

: TRUE

: 0.34 mm²

: Polyvinyl chloride (PVC)

: Black

: Polyvinyl chloride (PVC)

: -40-80 °C

: 8

: 7.1 mm

: 71.0 mm

: 28.4 mm

: Other

: Other

Documents & Downloads

Datasheet

Datasheet 3352149 LAPP 1030243/1000 Data transfer cable UNITRONIC® LiYY 8 x 0.34 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 3352149 LAPP 1030243/1000 Data transfer cable UNITRONIC® LiYY 8 x 0.34 mm² Black 1000 m

Description

UNITRONIC® LiYY 8x0.34 BK Low frequency data cable; 8x0.34; Wire color code: DIN 47100; PVC; flexible
