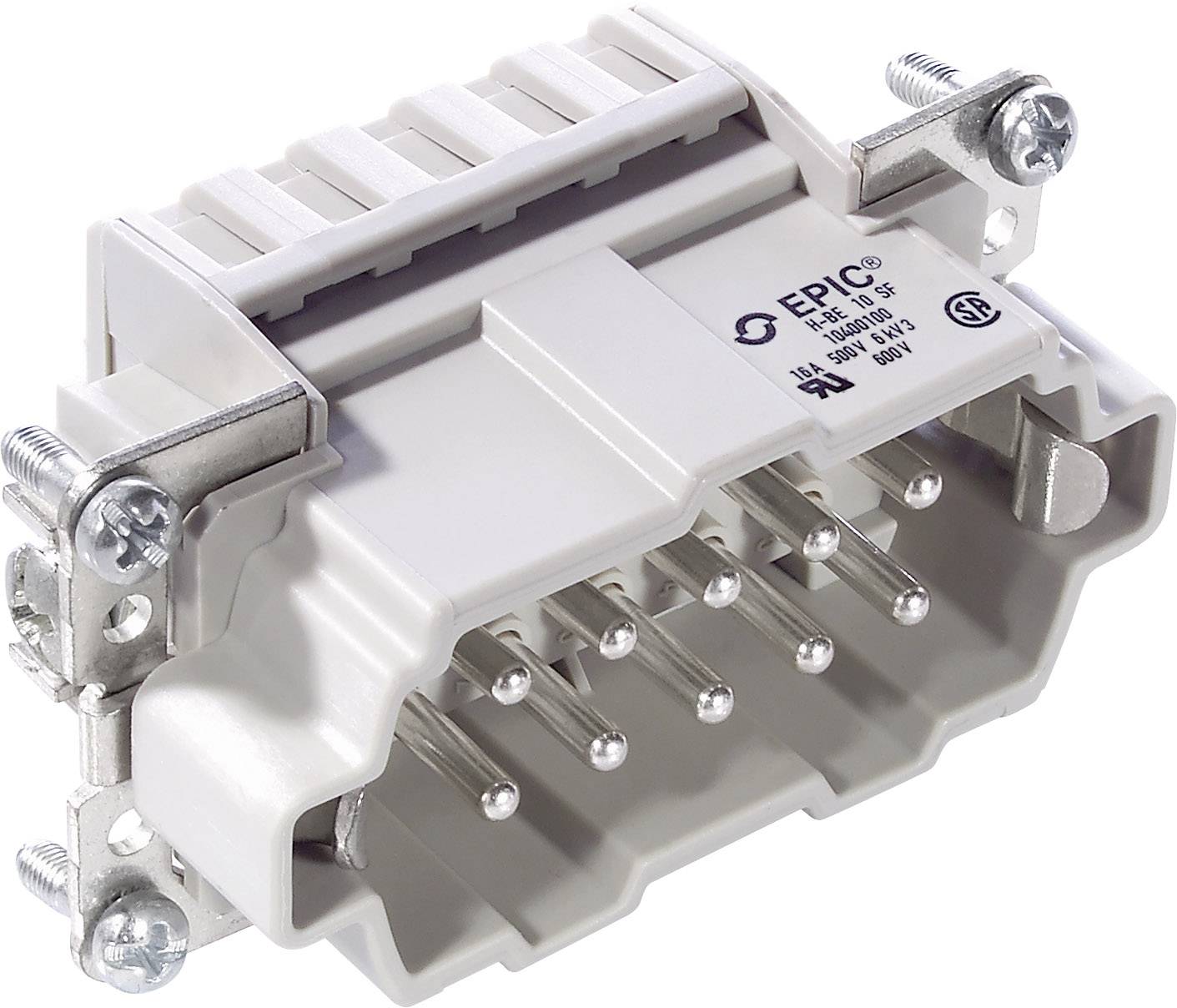

LAPP 10400100 Pin inset EPIC® H-BE 10 Total number of pins 10 + PE 10 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
EPIC® H-BE 10
Connection
Pull spring
Number of pins
10
Total no. of pins
10 + PE
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 10.08 / piece)
€ 100.83
plus VAT.
14-day return policy included
Technical specifications
- Product type
Pin inset
- Series
EPIC® H-BE 10
- Connection
Pull spring
- Number of pins
10
- Total no. of pins
10 + PE
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
- Rated surge voltage
6 kV
- Rated voltage
IEC: 500 V
UL: 600 V
CSA: 600 V
- Test current
IEC: 16 A
UL: 16 A
CSA: 16 A
- Content
10 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1023514 LAPP 10400100 Pin inset EPIC® H-BE 10 Total number of pins 10 + PE 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1023514 LAPP 10400100 Pin inset EPIC® H-BE 10 Total number of pins 10 + PE 10 pc(s)
Description
The EPIC® H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents.
