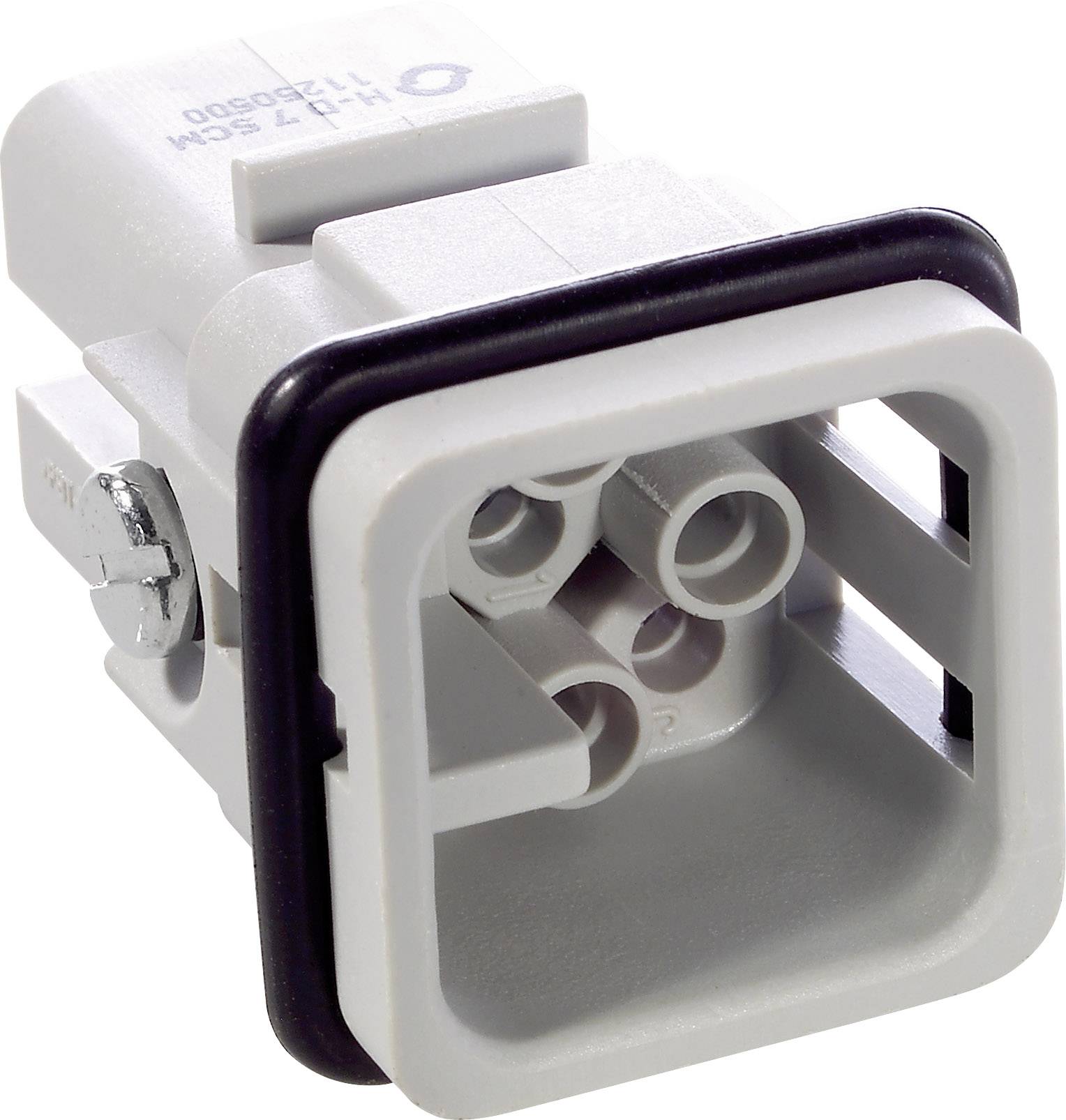

LAPP 11250000 Pin inset EPIC® H-D 7 Total number of pins 7 + PE 10 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
EPIC® H-D 7
Connection
Crimp
Features
for punched electrical contacts
Number of pins
7
Datasheet (PDF)
Highlights & Details
Pin Housing for stamped contacts Series H-D7
Our service for you
Technical specifications
- Product type
Pin inset
- Series
EPIC® H-D 7
- Features
for punched electrical contacts
- Connection
Crimp
- Number of pins
7
- Total no. of pins
7 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Rated surge voltage
2.5 kV
- Rated voltage
IEC: 250 V
UL: 250 V
- Test current
IEC: 10 A
UL: 10 A
- Content
10 pc(s)
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1023539 LAPP 11250000 Pin inset EPIC® H-D 7 Total number of pins 7 + PE 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1023539 LAPP 11250000 Pin inset EPIC® H-D 7 Total number of pins 7 + PE 10 pc(s)
Description
Inserts of the connector series H-D are designed for applications in which a high number of contacts are required.
