LAPP 2170056/500 Multicore cable RG 59 B/U Black 500 m
EAN:
Part number:
Item no:
Product type
Multicore cable
Cable type
RG 59 B/U
Content
500 m
Cable features
Flat
Width
13 mm
Datasheet (PDF)
Highlights & Details

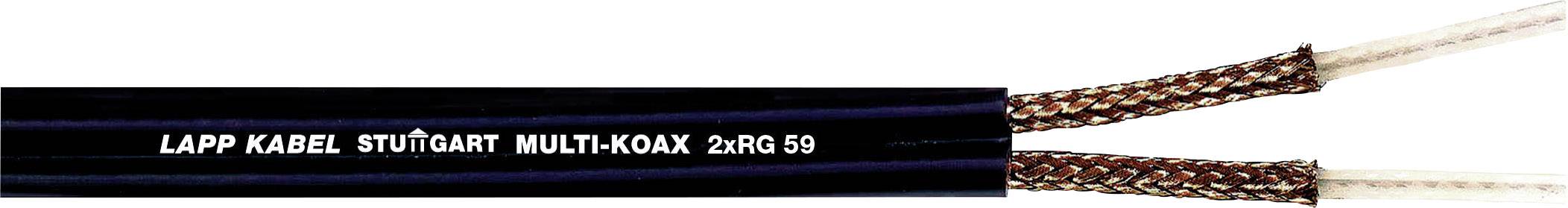

Multi-coax cable RG 59 B/U
Technical specifications
- Product type
Multicore cable
- Cable type
RG 59 B/U
- Cable features
Flat
- Width
13 mm
- Height
6.5 mm
- Factory colour
Black
- Content
500 m
- Bend radius (no. of ODs for fixed installation)
15
- Bend radius (no. of ODs for flexible installation)
15
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
2170056/500
- Insulation material
PVC
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+80 °C
- Type
Lapp Kabel & Leitung
- Max. length sold by the metre
500 m
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1025196 LAPP 2170056/500 Multicore cable RG 59 B/U Black 500 m
User & Safety Instructions
User & Safety Instructions 1025196 LAPP 2170056/500 Multicore cable RG 59 B/U Black 500 m
Description
The use of multi-coaxial cable RG 59 B/U as screen cable leads in extended systems to avoid the accumulation of individual cables in parallel guide over larger distances; cost-saving installation and greater mechanical protection of the sensitive single cable.
