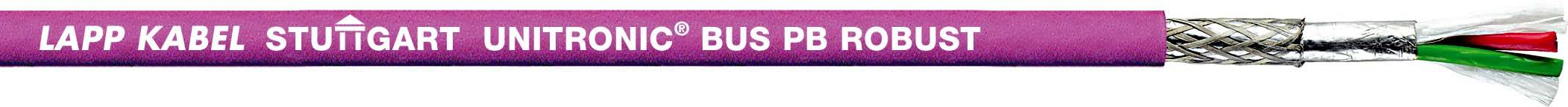

Image similar

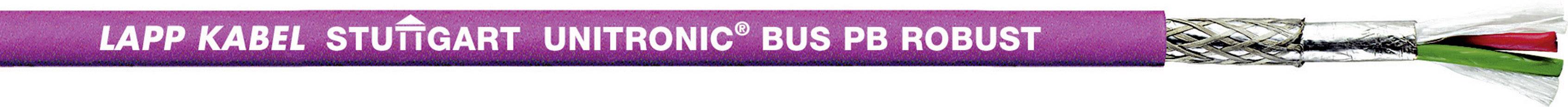

Image similar
LAPP 2170620/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet 500 m
EAN:
Part number:
Item no:
Product type
Bus cable
Cable type
UNITRONIC® BUS
No. of leads
2 x
Cross section (each core)
0.32 mm²
Cross section (each core) (part 2)
0.32 mm²
Datasheet (PDF)
Number
Total (1 m = € 3.27)
€ 1,634.45
plus VAT.
Only 3 Set(s) available
Highlights & Details
UNITRONIC ® BUS PB ROBUST
Technical specifications
- Product type
Bus cable
- Cable type
UNITRONIC® BUS
- No. of leads
2 x
- Cross section (each core)
0.32 mm²
- Cross section (each core) (part 2)
0.32 mm²
- Cross section
1 x 2 x 0.32 mm² + 0.32 mm²
- Cable features
Shielded
Common shield
Flame-retardant
UV-resistant
- Outside Ø
8 mm
- Factory colour
Violet
- Content
500 m
- Nominal voltage
250 V
- Test voltage
Wire/Wire: 1500 V eff · Wire/shield: 1500 V
- Bend radius (no. of ODs for fixed installation)
10
- Bend radius (no. of ODs for flexible installation)
19.23
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
2170620/500
- Insulation material
TPE (low-odour thermoplastic elastomer )
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (flexible installation)
+80 °C
- Operating capacity
(1 kHz): approx. 28.5 nF/km
- Wave impedance
150 Ω
- Type
UNITRONIC BUS PB ROBUST 1X2X0,64
- Max. length sold by the metre
500 m
- Twisted pair cabling (part 1)
Yes (1)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1336204 LAPP 2170620/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet 500 m
User & Safety Instructions
User & Safety Instructions 1336204 LAPP 2170620/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 0.32 mm² Violet 500 m
Description
Robust PROFIBUS cable for use under difficult ambient conditions.
