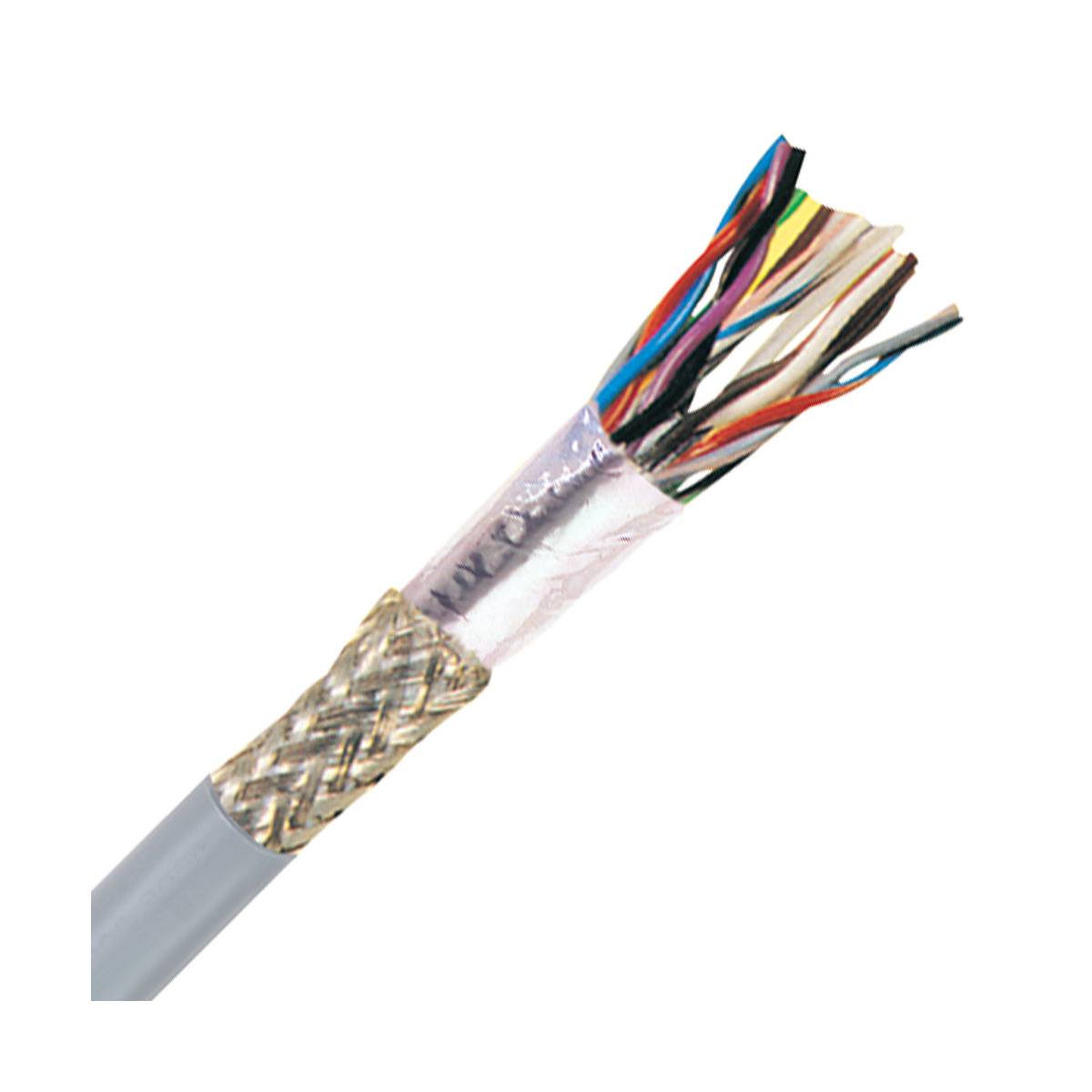

LAPP 302406STP/305 Data transfer cable UNITRONIC® 300 6 x 2 x 0.2 mm² Dark grey 305 m
EAN:
Part number:
Item no:
Product type
Data transfer cable
No. of leads
12 x
Cross section (each core)
0.2 mm²
Cable type
UNITRONIC® 300
Twisted pair cabling (part 1)
Yes (1)
Highlights & Details
Data cable UNITRONIC ® 300 STP
Technical specifications
- Product type
Data transfer cable
- Cable type
UNITRONIC® 300
- No. of leads
12 x
- Cross section (each core)
0.2 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
6 x 2 x 0.2 mm²
- Outside Ø
8.70 mm
- Factory colour
Dark grey
- Content
305 m
- AWG max.
24
- Bend radius (no. of ODs for fixed installation)
6
- Bend radius (no. of ODs for flexible installation)
15
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
302406STP/305
- Insulation material
PVC
- Core layout
Finely stranded wires made of tin-plated copper wires
- Type
UNITRONIC 300 STP 6x2x24 AWG
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1335969 LAPP 302406STP/305 Data transfer cable UNITRONIC® 300 6 x 2 x 0.2 mm² Dark grey 305 m
Description
Twisted pair, shielded control and signal cable with a small conductor cross-section. Ideal for use in the export-oriented engineering as well as for internal and external wiring.
