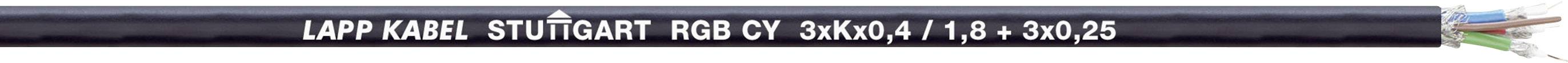

LAPP 34245/1000 Multicore cable Black 1000 m
EAN:
Part number:
Item no:
Product type
Multicore cable
Content
1000 m
Cable features
Low-capacitance
Outside Ø
8 mm
Factory colour
Black
Datasheet (PDF)
Highlights & Details
Coaxial cable RGB
Technical specifications
- Product type
Multicore cable
- Cable features
Low-capacitance
- Outside Ø
8 mm
- Factory colour
Black
- Content
1000 m
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
34245/1000
- Insulation material
PVC
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+50 °C
- Type
34245/1000
- Max. length sold by the metre
1000 m
Documents & Downloads
Datasheet
Datasheet 1024586 LAPP 34245/1000 Multicore cable Black 1000 m
User & Safety Instructions
User & Safety Instructions 1024586 LAPP 34245/1000 Multicore cable Black 1000 m
Description
Connection and connection cable for high-resolution color monitors for IT systems, PC and CADAnwendersysteme
As well as for process visualization systems in industrial plants.
With small external dimensions, the lead over low-attenuation coaxial cable, the large transmission lengths. The
Separate transfer of the synchronization pulse or additional switching functions can be carried out via the control wires.
With the overall shielding from the dense copper braiding is the cable for use in electro-magnetic
Contaminated areas. The robust outer sheath is not sensitive to atmospheric radiation.
The cable is for fixed laying in dry and damp rooms, not for underground installation.
This text is machine translated.
As well as for process visualization systems in industrial plants.
With small external dimensions, the lead over low-attenuation coaxial cable, the large transmission lengths. The
Separate transfer of the synchronization pulse or additional switching functions can be carried out via the control wires.
With the overall shielding from the dense copper braiding is the cable for use in electro-magnetic
Contaminated areas. The robust outer sheath is not sensitive to atmospheric radiation.
The cable is for fixed laying in dry and damp rooms, not for underground installation.
This text is machine translated.
