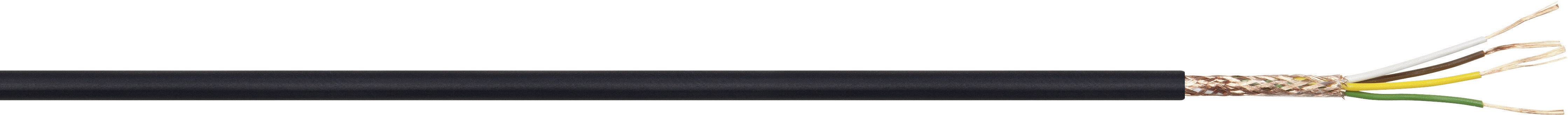

LAPP 49900202 Microphone cable 5 x 0.14 mm² Black Sold per metre
EAN:
Part number:
Item no:
Product type
Microphone cable
No. of leads
5 x
Cross section (each core)
0.14 mm²
Content
Sold per metre
Cross section
5 x 0.14 mm²
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 2.18
5
3% = € 0.07
€ 2.11
10
5% = € 0.11
€ 2.07
50
10% = € 0.22
€ 1.96
100
20% = € 0.44
€ 1.74
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.18 / piece)
€ 2.18
plus VAT.
Highlights & Details
LAPP 49900202 Microphone cable 5 x 0.14 mm² Black Sold per metre
Technical specifications
- Conductor resistance: 138 Ω/km
- Product type
Microphone cable
- No. of leads
5 x
- Cross section (each core)
0.14 mm²
- Cross section
5 x 0.14 mm²
- Cable features
Shielded
Common shield
Flame-retardant
- Outside Ø
4.50 mm
- Factory colour
Black
- Content
Sold per metre
- Test voltage
1000 V
- Bend radius (no. of ODs for fixed installation)
8
- Bend radius (no. of ODs for flexible installation)
8
- Packaged
No
- Sold per metre
Yes
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
49900202
- Insulation material
PVC
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Core layout
Plain copper
- Core layout
1 x 0.10 mm
- RoHS-compliant
Yes
- Type
FBC
- Max. length sold by the metre
500 m
Documents & Downloads
Datasheet
Datasheet 608418 LAPP 49900202 Microphone cable 5 x 0.14 mm² Black Sold per metre
Information
Information 608418 LAPP 49900202 Microphone cable 5 x 0.14 mm² Black Sold per metre
Description
Microphone cable with overall shield. For fixed laying as well as occasionally moved in light mechanical loads.
