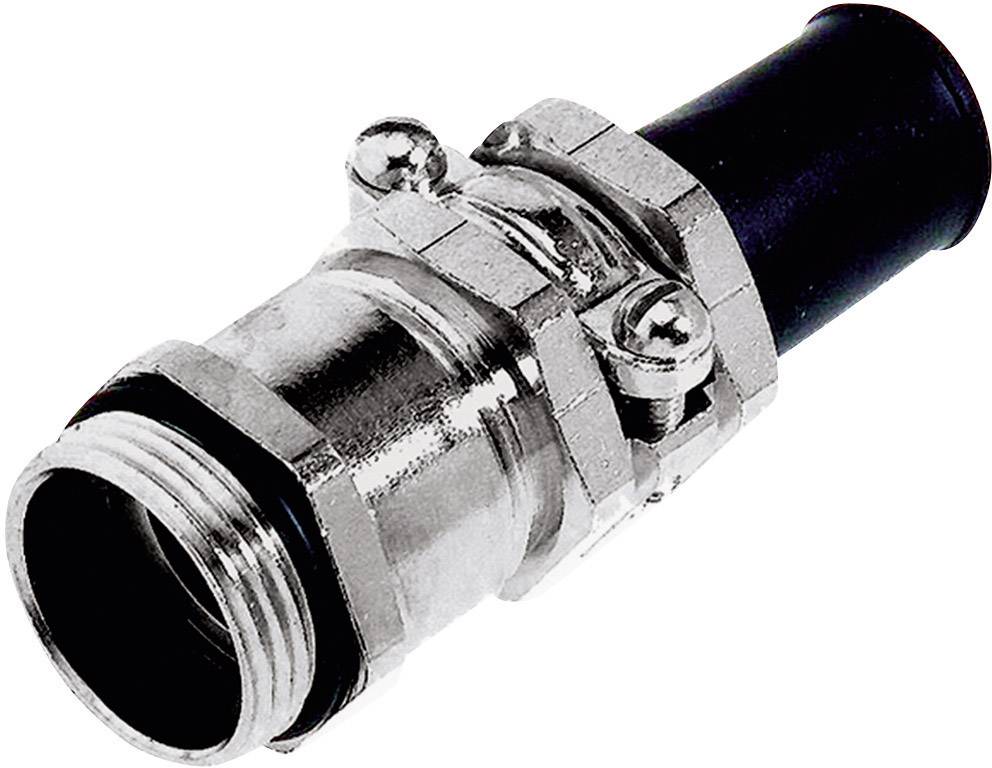

LAPP 52001060 Cable gland PG16 Brass Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG16
Material
Brass
Clamp Ø
11.5 mm
Terminal Ø (max.)
13 mm
Datasheet (PDF)
Highlights & Details
SKINDICHT ® SR screwed cable gland
Our service for you
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
PG16
- Material
Brass
- Clamp Ø
11.5 mm
- Terminal Ø (max.)
13 mm
- Thread length
6.5 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP65
- Spanner size
24 mm
24 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52001060
- Type
SKINDICHT® SR PG 16/13
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1043551 LAPP 52001060 Cable gland PG16 Brass Brass 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043551 LAPP 52001060 Cable gland PG16 Brass Brass 25 pc(s)
Description
Reliable bending and anti-kink device. High strain relief. Robust. For cables and wires with large outer diameter. High protection class.
