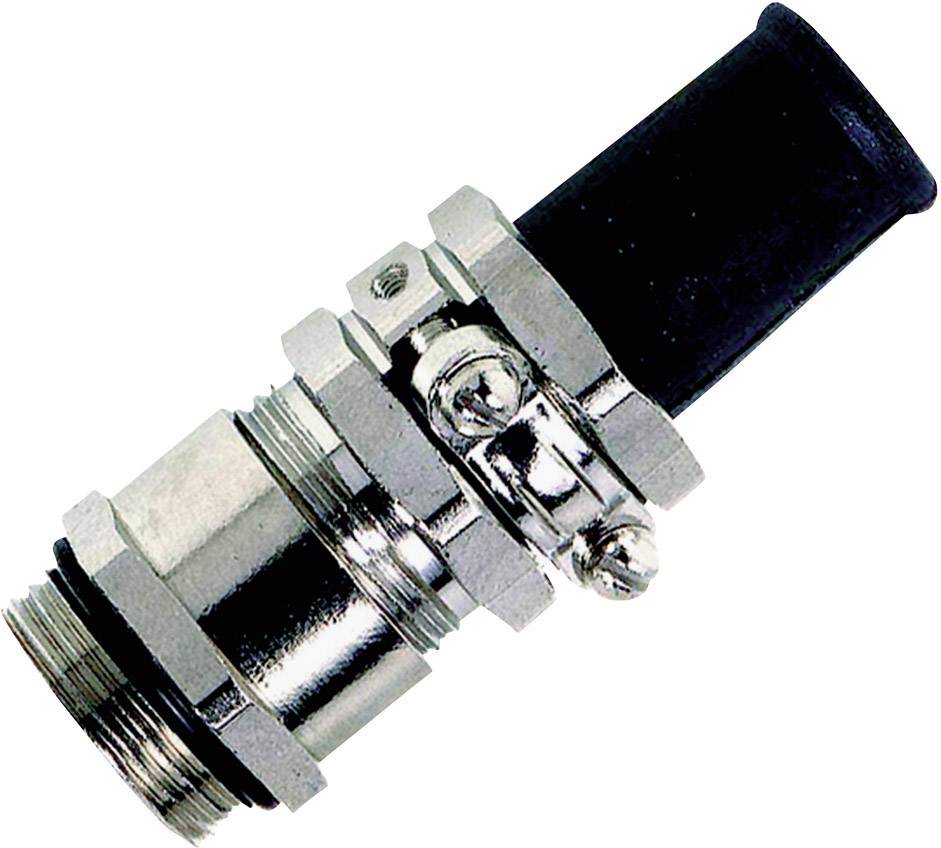

LAPP 52005330 Cable gland PG16 Brass Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG16
Material
Brass
Clamp Ø
11 mm
Terminal Ø (max.)
13 mm
Datasheet (PDF)
Highlights & Details
SKINDICHT ® SRE screwed cable gland
Our service for you
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
PG16
- Material
Brass
- Clamp Ø
11 mm
- Terminal Ø (max.)
13 mm
- Thread length
6.5 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP65
- Spanner size
24 mm
24 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52005330
- Type
SKINDICHT® SRE PG 16/16/13/9
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1043584 LAPP 52005330 Cable gland PG16 Brass Brass 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043584 LAPP 52005330 Cable gland PG16 Brass Brass 25 pc(s)
Description
Perfect sealing with kink protection. Optimal, low-ohm 360° shield contact. cable strain relief. Gentle clamping of the cable. High protection class.
