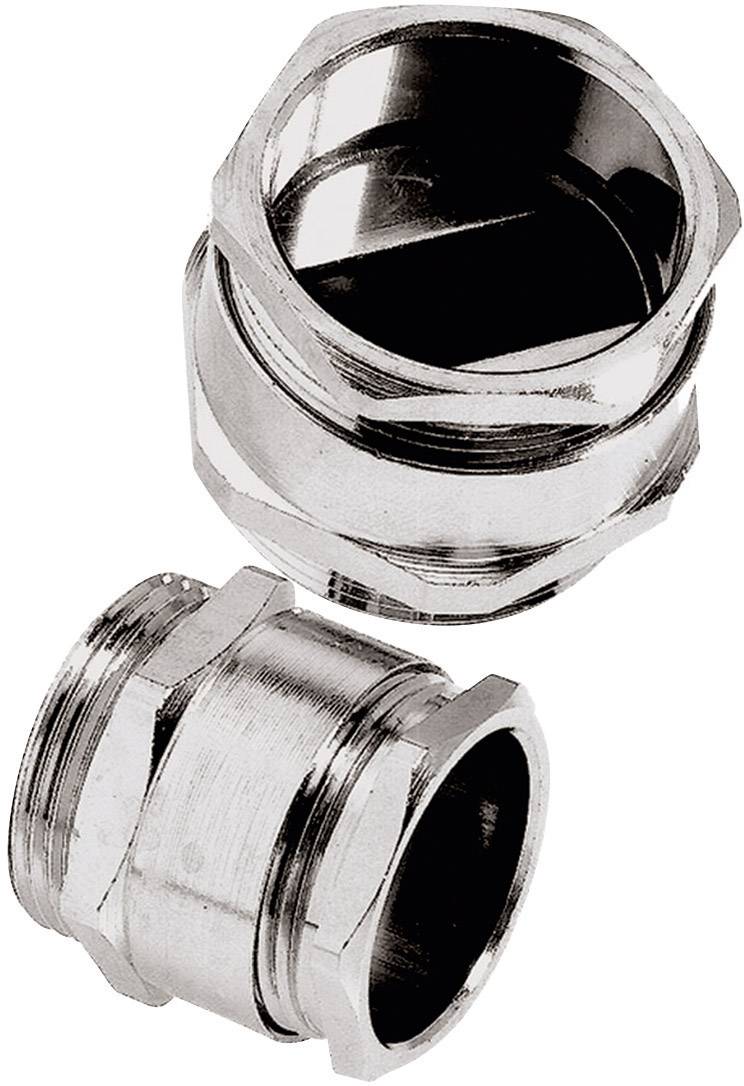

LAPP 52005480 Cable gland with strain relief PG16 Brass Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG16
Material
Brass
Features
with strain relief
Factory colour
Brass
Datasheet (PDF)
Highlights & Details
SKINDICHT ® SVF screwed cable gland
Our service for you
Technical specifications
- Cable width 16 mm
- Cable thickness: 5 mm
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Brass
- External thread
PG16
- Material
Brass
- Thread length
6.5 mm
- Width
16 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP54
- Spanner size
24 mm
22 mm
- Dimensions
5 mm
- Halogen-free
No
- Content
25 pc(s)
- Dim
5
- RoHS-compliant
Yes
- Manufacturer part #
52005480
- Type
SKINDICHT® SVF PG 16
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1043645 LAPP 52005480 Cable gland with strain relief PG16 Brass Brass 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043645 LAPP 52005480 Cable gland with strain relief PG16 Brass Brass 25 pc(s)
Description
High mechanical load-carrying capacity. lateral sealing lips automatically adapt to. Optimum strain relief. Large clear width, hence, up to two flat cables are clamped.
