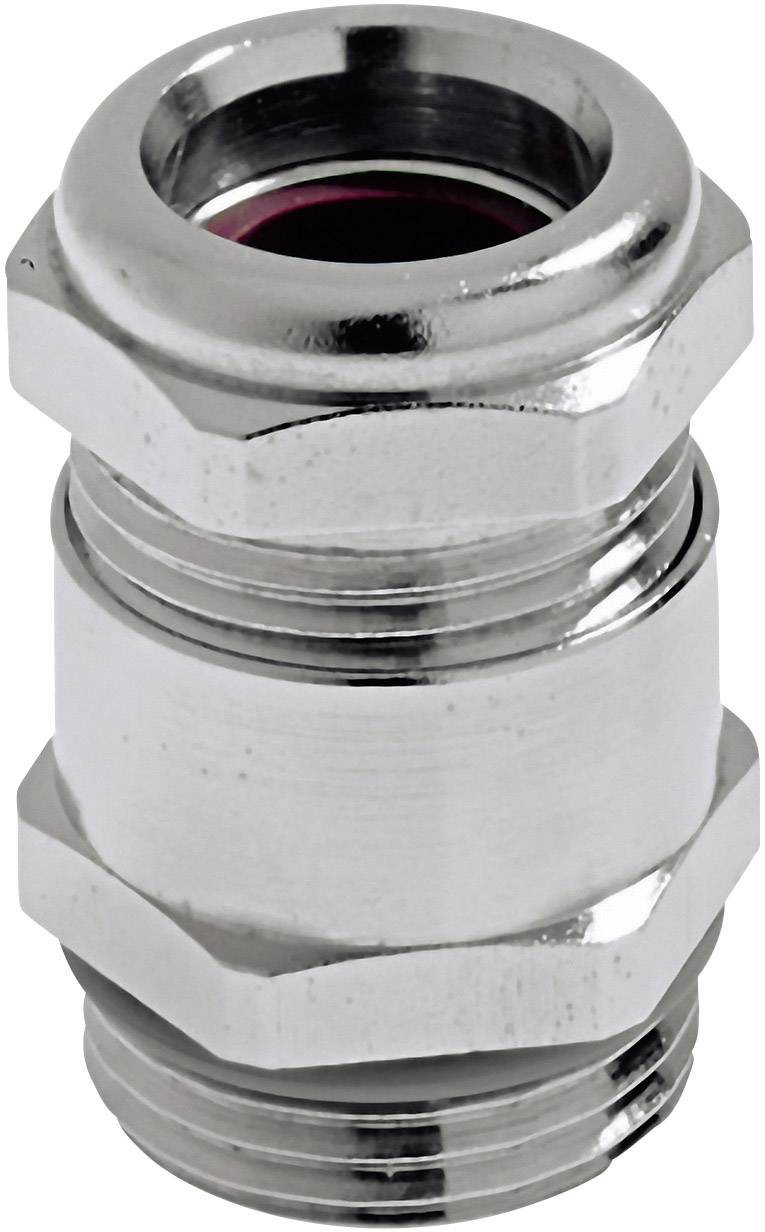

LAPP 52024971 Cable gland PG16 Brass Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG16
Material
Brass
Clamp Ø
10.8 mm
Terminal Ø (max.)
12.8 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
PG16
- Material
Brass
- Clamp Ø
10.8 mm
- Terminal Ø (max.)
12.8 mm
- Thread length
6.5 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP68
- Spanner size
24 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52024971
- Type
SKINDICHT® SHV-VITON PG 16/11/13
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1043437 LAPP 52024971 Cable gland PG16 Brass Brass 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043437 LAPP 52024971 Cable gland PG16 Brass Brass 25 pc(s)
Description
Water-tight. Gentle clamping of the cable. Robust. High strain relief.
