LAPP 52105320 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20 x 1.5
Type
Functional thread: PG 13.5
Material
Brass
Clamp Ø
6.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 7.55
-22 %
€
Highlights & Details
LAPP 52105320 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
- Pressurised waterproof
- for highest demands
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M20 x 1.5
- Type
Functional thread: PG 13.5
- Material
Brass
- Clamp Ø
6.5 mm
- Terminal Ø (max.)
8.8 mm
- Thread length
6 mm
- Length
32.50 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP68 (up to 10 bar)
- Spanner size
22 mm
22 mm
- Halogen-free
No
- Content
1 pc(s)
- Dim
- RoHS-compliant
Yes
- Manufacturer part #
52105320
- Type
SKINDICHT® SHV-M 20/13,5/9
- Material (details)
Body: Nickel-plated brass · Sealing cone: CR/NBR · O-ring: NBR
- Type
SHV-M 20/13.5/9
- Temperature range
-20 - +80 °C
Variants(All information is without VAT, plus shipping costs)
Clamp Ø
Terminal Ø (max.)
External thread
LAPP 52105320 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
This article
6.5 mm
8.8 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 5.87*
LAPP 52105370 Cable gland M25/PG21 Brass Brass 1 pc(s)
13.5 mm
15.8 mm
M25/PG21
Minimum order quantity: 1
Multiple: 1
€ 8.39*
LAPP 52105270 Cable gland M12 x 1.5 Brass Brass 1 pc(s)
3 mm
4.8 mm
M12 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 5.03*

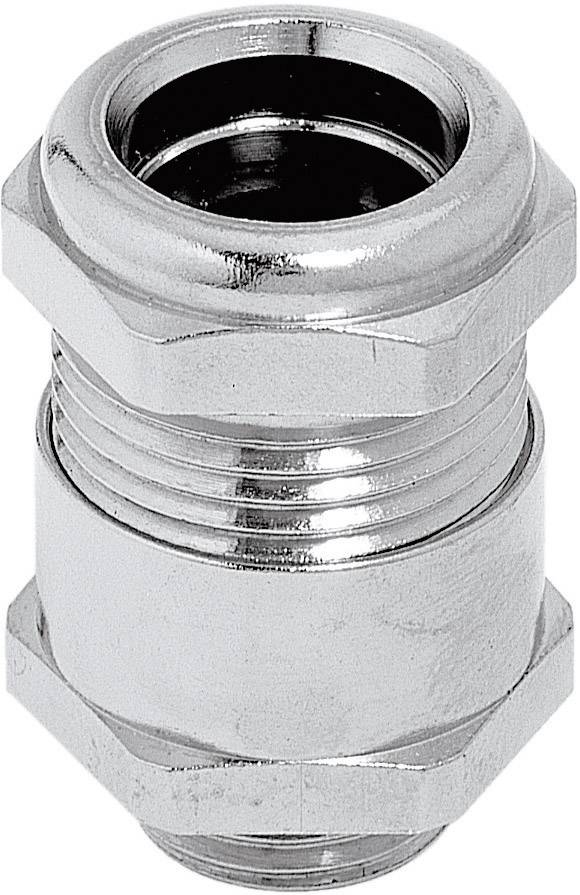

LAPP 52105280 Cable gland M16 x 1.5 Brass Brass 1 pc(s)
4.5 mm
5.8 mm
M16 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 5.45*
LAPP 52105290 Cable gland M16 x 1.5 Brass Brass 1 pc(s)
4.5 mm
6.8 mm
M16 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 5.45*
LAPP 52105310 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
6.5 mm
8.8 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 7.55*
LAPP 52105330 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
9 mm
10.8 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 5.87*
LAPP 52105340 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
9 mm
10.8 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 8.39*
LAPP 52105350 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
9.5 mm
12.8 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 8.39*
LAPP 52105360 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
13 mm
14.8 mm
M20 x 1.5
Minimum order quantity: 1
Multiple: 1
€ 8.39*
Documents & Downloads
Datasheet
Datasheet 603565 LAPP 52105320 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 603565 LAPP 52105320 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
Information
Information 603565 LAPP 52105320 Cable gland M20 x 1.5 Brass Brass 1 pc(s)
Description
Pressurised water-proof cable screw joint for highest demands with metric connection thread according to EN 50262. The conical special sealing element draws itself through the complete screw joint and thus ensures an excellent pressure strength and strain relief.
