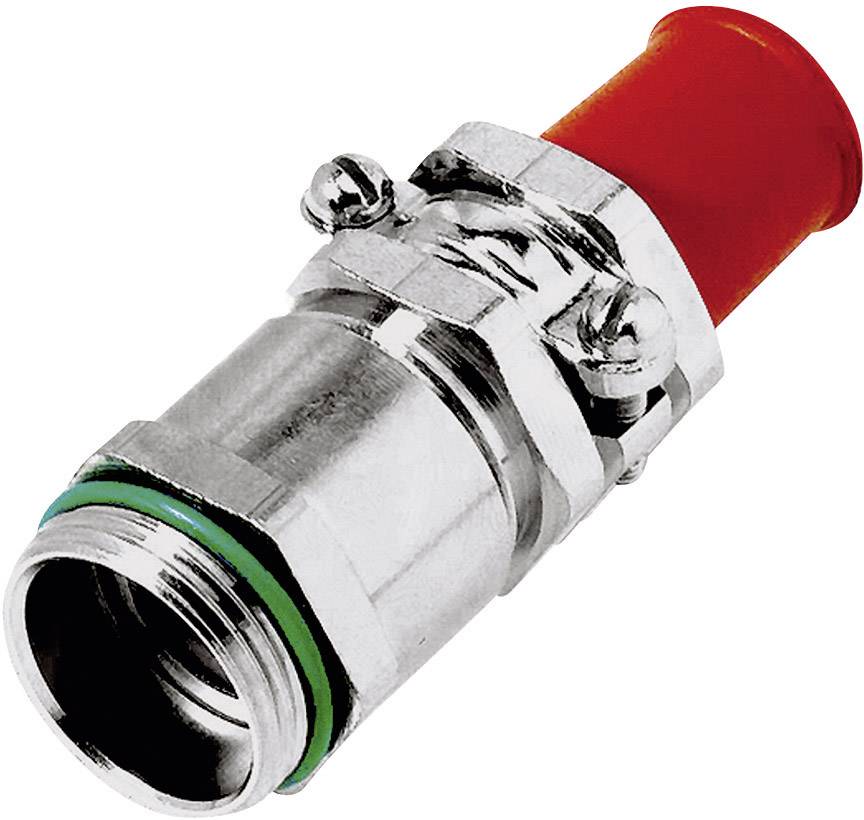

LAPP 52105890 Cable gland M25 Brass Brass 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M25
Material
Brass
Clamp Ø
13.5 mm
Terminal Ø (max.)
15 mm
Datasheet (PDF)
Highlights & Details
SKINDICHT ® SR-SV screwed cable gland
Our service for you
Technical specifications
- Functional thread: PG 21
- Product type
Cable gland
- Factory colour
Brass
- External thread
M25
- Material
Brass
- Clamp Ø
13.5 mm
- Terminal Ø (max.)
15 mm
- Thread length
7 mm
- Min. temperature
-15 °C
- Max. temperature
+165 °C
IP65
- Spanner size
30 mm
30 mm
- Halogen-free
No
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52105890
- Type
SKINDICHT® SR-SV-M 25X1,5/21/15
- Type
165 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1043642 LAPP 52105890 Cable gland M25 Brass Brass 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1043642 LAPP 52105890 Cable gland M25 Brass Brass 10 pc(s)
Description
For high temperatures. Resistant to oils, solvents, acids and chemicals. Resistant to seawater penetration. High strain relief. Robust.
