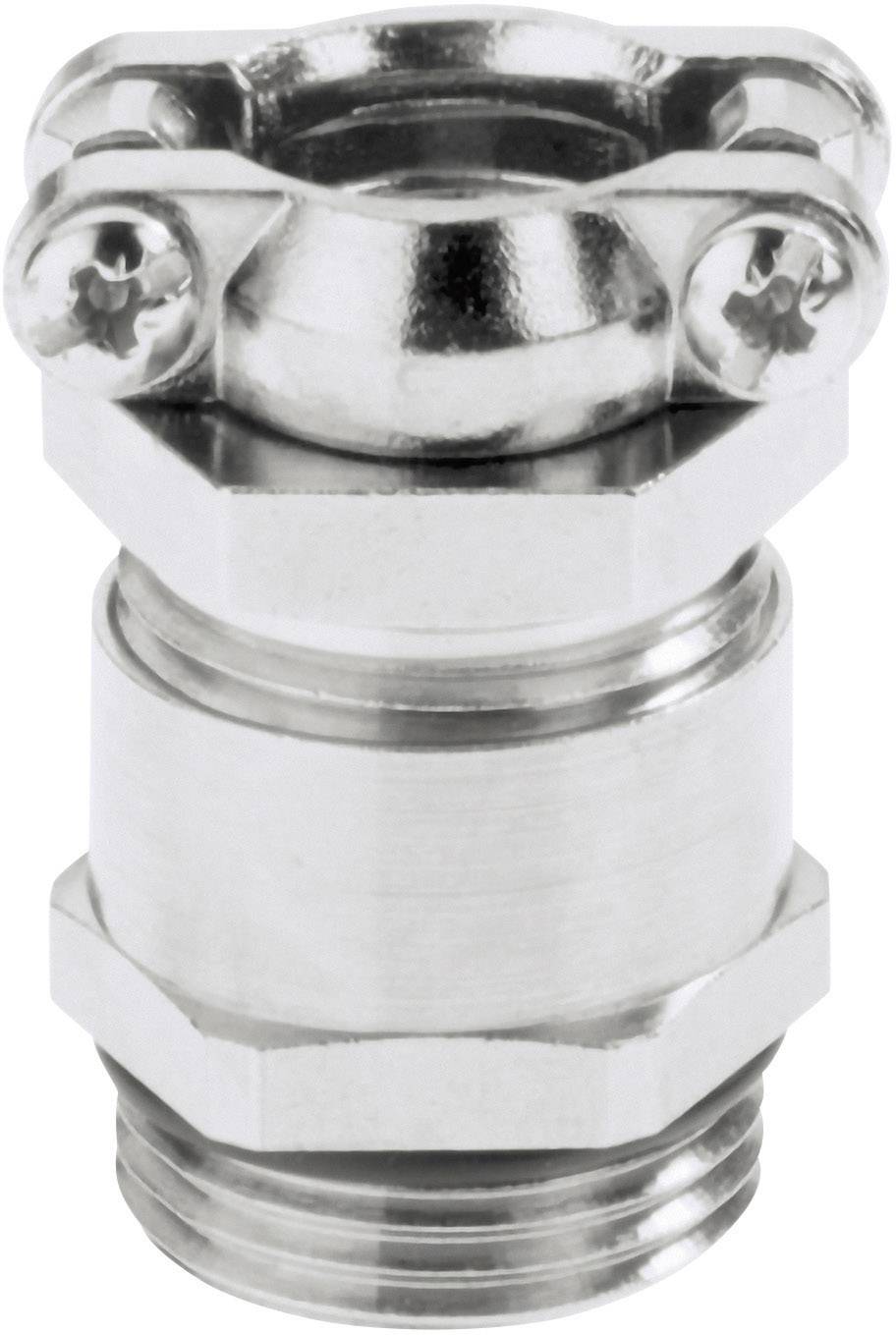

LAPP 52106840 Cable gland M25 Brass Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M25
Material
Brass
Clamp Ø
16 mm
Terminal Ø (max.)
19.3 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M25
- Material
Brass
- Clamp Ø
16 mm
- Terminal Ø (max.)
19.3 mm
- Thread length
7 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP55
- Spanner size
30 mm
30 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52106840
- Type
SKINDICHT® SKZ-M 25X1,5/21
- Case material
Brass
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1043503 LAPP 52106840 Cable gland M25 Brass Brass 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043503 LAPP 52106840 Cable gland M25 Brass Brass 25 pc(s)
Description
With recess sealing ring for adjustment to different cable diameters. High strain relief. High mechanical load-carrying capacity.
