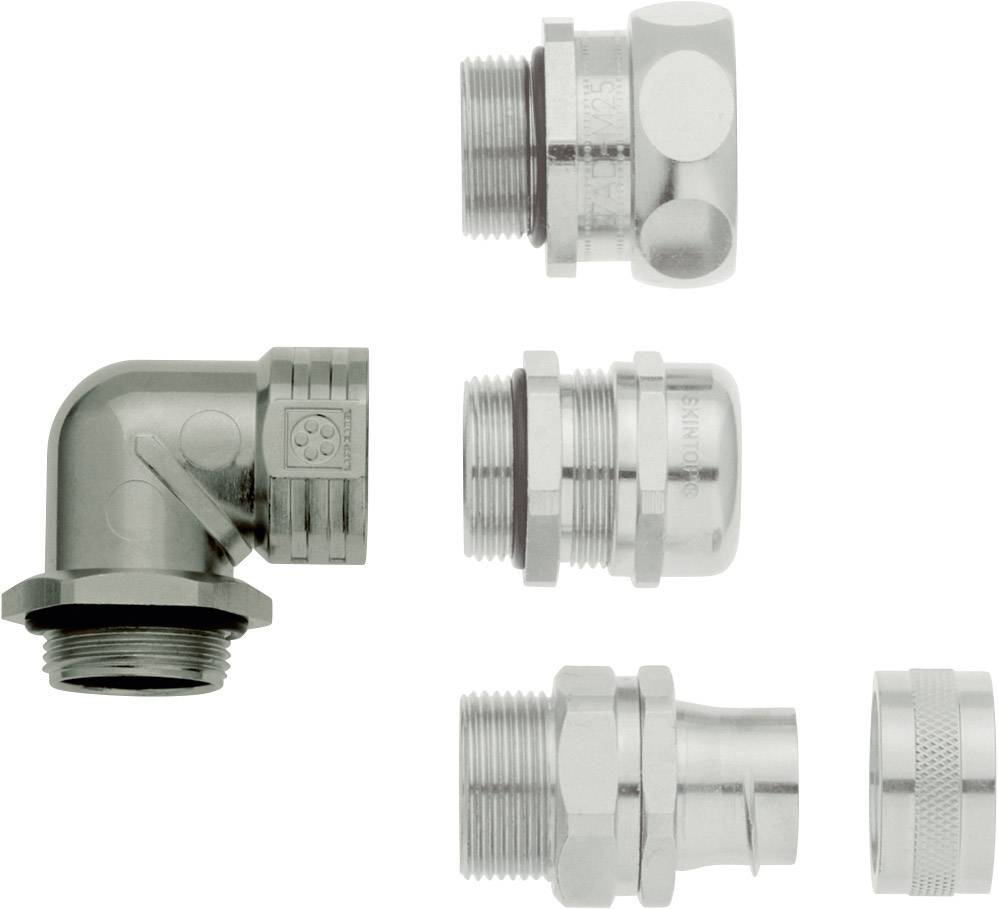

LAPP 52107811 Elbow union anti-corrosive M16 M16 Die cast Ecru 25 pc(s)
EAN:
Part number:
Item no:
Product type
Elbow union
External thread
M16
Type
Without recess sealing ring
Material
Die cast
Features
anti-corrosive
Datasheet (PDF)
Technical specifications
- Product type
Elbow union
- Features
anti-corrosive
- Factory colour
Ecru
- External thread
M16
- Internal thread
M16
- Type
Without recess sealing ring
- Material
Die cast
- Thread length
11.5 mm
IP55
- Spanner size
18 mm
22 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52107811
- Type
SKINDICHT® RWV-M 16X1,5 O. E+D
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1043268 LAPP 52107811 Elbow union anti-corrosive M16 M16 Die cast Ecru 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043268 LAPP 52107811 Elbow union anti-corrosive M16 M16 Die cast Ecru 25 pc(s)
Description
Combinations with different fittings is possible. Space and gewichtseinsparende use due to thin cable diameter. Reducing the overall height. Parallel routing the cable on the housing. Corrosion-resistant
