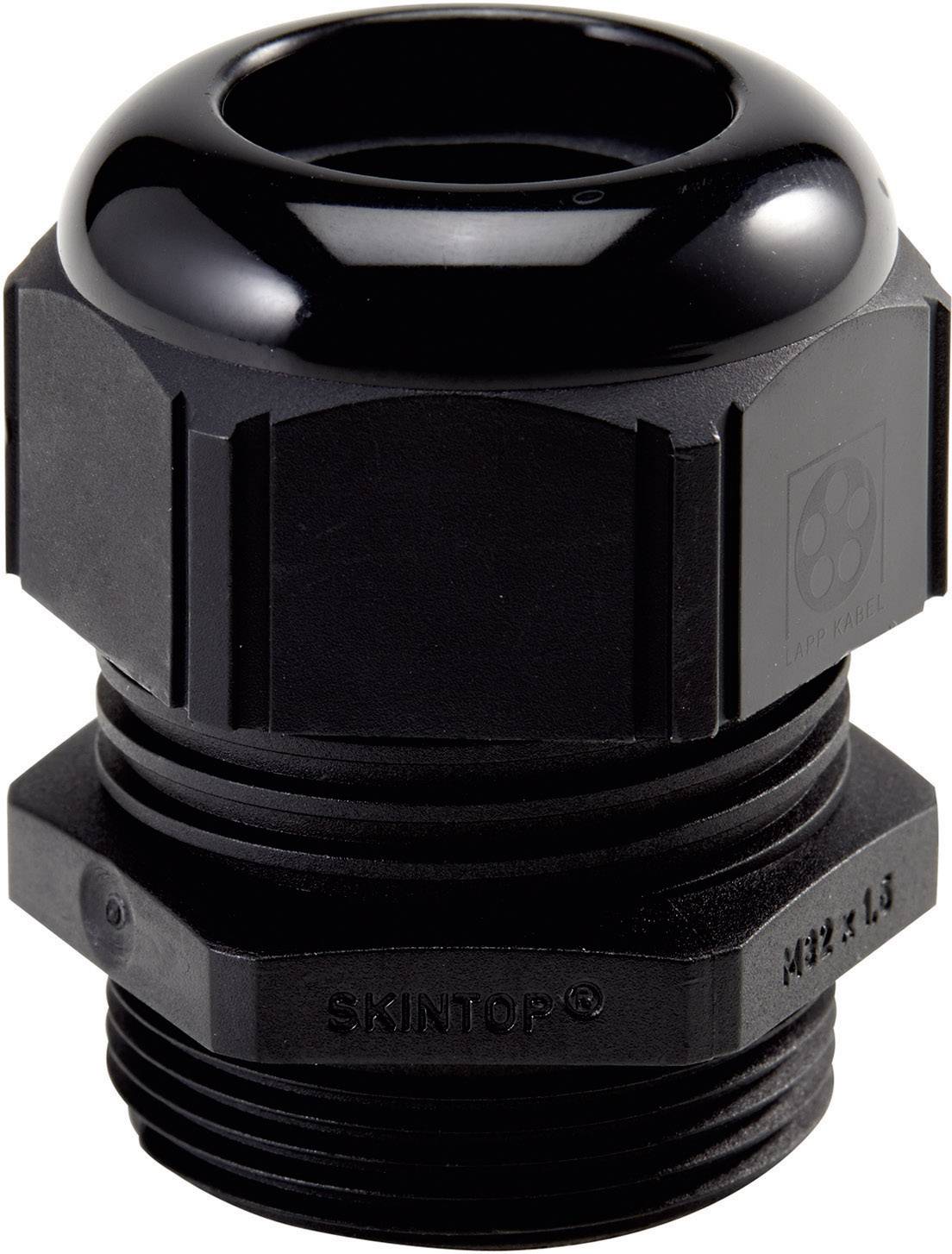

LAPP 53016850 Cable gland 3/4" Polyamide Black (RAL 9005) 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
3/4"
Material
Polyamide
Clamp Ø
13 mm
Terminal Ø (max.)
18 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Factory colour
Black (RAL 9005)
- External thread
3/4"
- Material
Polyamide
- Clamp Ø
13 mm
- Terminal Ø (max.)
18 mm
- Thread length
15 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP68
- Spanner size
33 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53016850
- Type
SKINTOP® BS 3/4''
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1043809 LAPP 53016850 Cable gland 3/4" Polyamide Black (RAL 9005) 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043809 LAPP 53016850 Cable gland 3/4" Polyamide Black (RAL 9005) 25 pc(s)
Description
Conical NPT threads. Permanent vibration protection. Optimum strain relief. Large, variable clamping ranges. High functional reliability.
