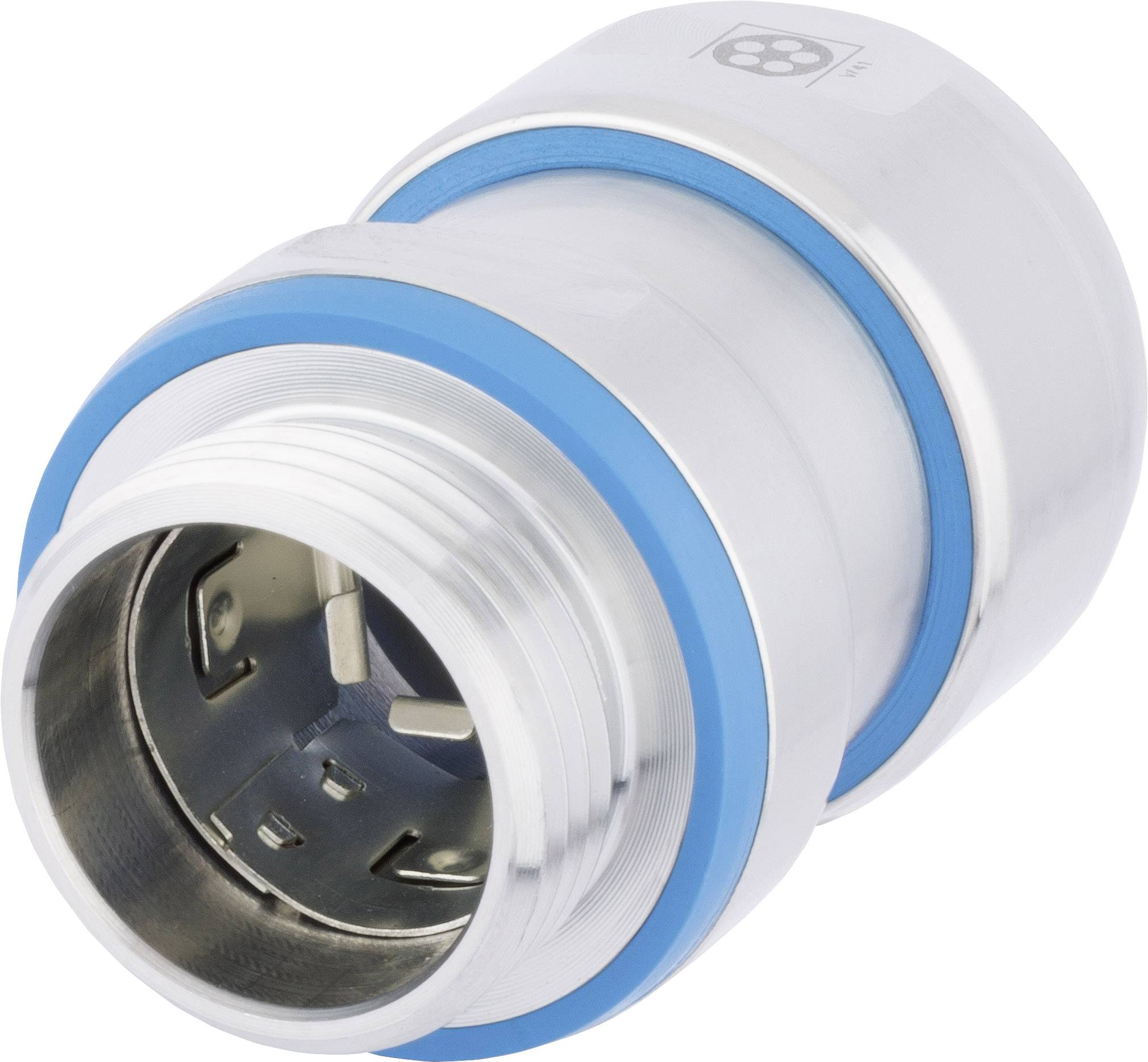

LAPP 53105301 Cable gland EMC M16 x 1.5 Stainless steel Stainless steel 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M16 x 1.5
Material
Stainless steel
Clamp Ø
6.5 mm
Terminal Ø (max.)
9 mm
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
Cable gland
- Features
EMC
- Factory colour
Stainless steel
- External thread
M16 x 1.5
- Material
Stainless steel
- Clamp Ø
6.5 mm
- Terminal Ø (max.)
9 mm
- Thread length
7 mm
- Length
43.4 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP68
IP69
- Spanner size
20 mm
- Certification marks
DIN EN 60423
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53105301
- Type
SKINTOP® HYGIENIC SC M 16 x 1,5
Documents & Downloads
Datasheet
Datasheet 1608313 LAPP 53105301 Cable gland EMC M16 x 1.5 Stainless steel Stainless steel 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1608313 LAPP 53105301 Cable gland EMC M16 x 1.5 Stainless steel Stainless steel 1 pc(s)
