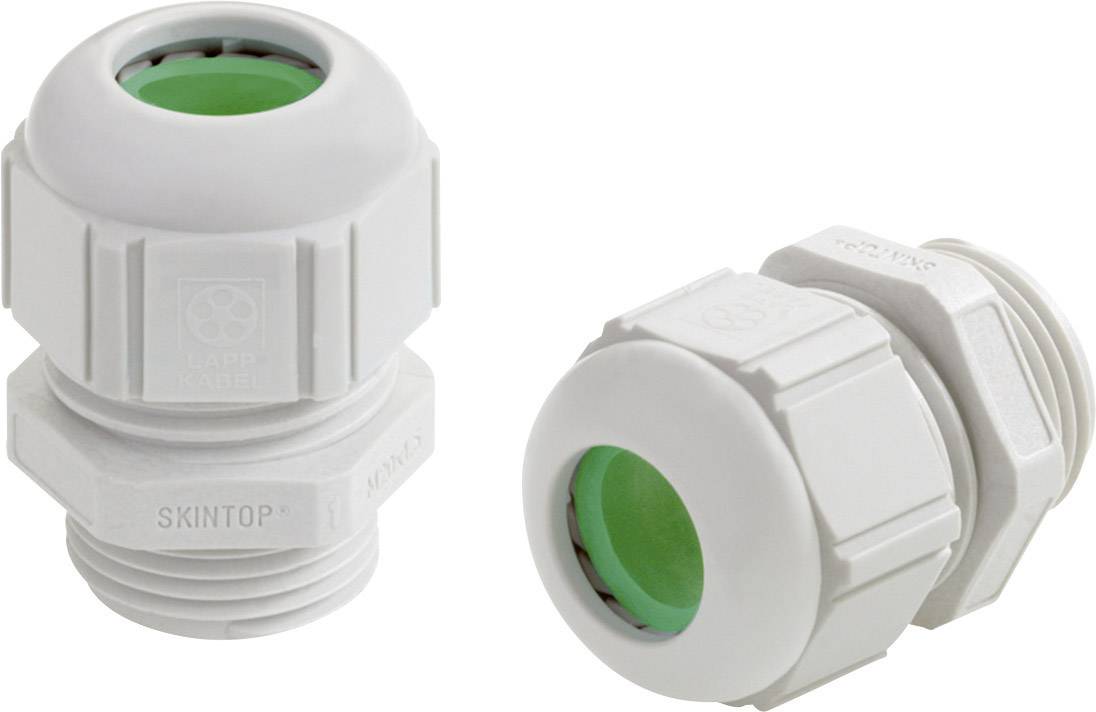

LAPP 53111447 Cable gland M32 Polyamide Grey-white (RAL 7035) 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M32
Material
Polyamide
Clamp Ø
11 mm
Terminal Ø (max.)
21 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Factory colour
Grey-white (RAL 7035)
- External thread
M32
- Material
Polyamide
- Clamp Ø
11 mm
- Terminal Ø (max.)
21 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP68
- Spanner size
36 mm
- Halogen-free
Yes
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53111447
- Type
SKINTOP® ST-HF-M 32X1,5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1044118 LAPP 53111447 Cable gland M32 Polyamide Grey-white (RAL 7035) 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1044118 LAPP 53111447 Cable gland M32 Polyamide Grey-white (RAL 7035) 25 pc(s)
Description
Enhanced oil resistance for higher reliability. Permanent vibration protection. Large, variable clamping ranges. Optimum strain relief. Accessories diversity (e.g. Multiple sealing inserts).
