LAPP 53112340 Cable gland PG16 Brass Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG16
Material
Brass
Clamp Ø
8 mm
Terminal Ø (max.)
14 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
PG16
- Material
Brass
- Clamp Ø
8 mm
- Terminal Ø (max.)
14 mm
- Thread length
12 mm
- Min. temperature
-30 °C
- Max. temperature
+100 °C
IP68
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53112340
- Type
SKINTOP® MS-SC-XL PG 16
- Case material
Brass
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1044016 LAPP 53112340 Cable gland PG16 Brass Brass 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1044016 LAPP 53112340 Cable gland PG16 Brass Brass 25 pc(s)

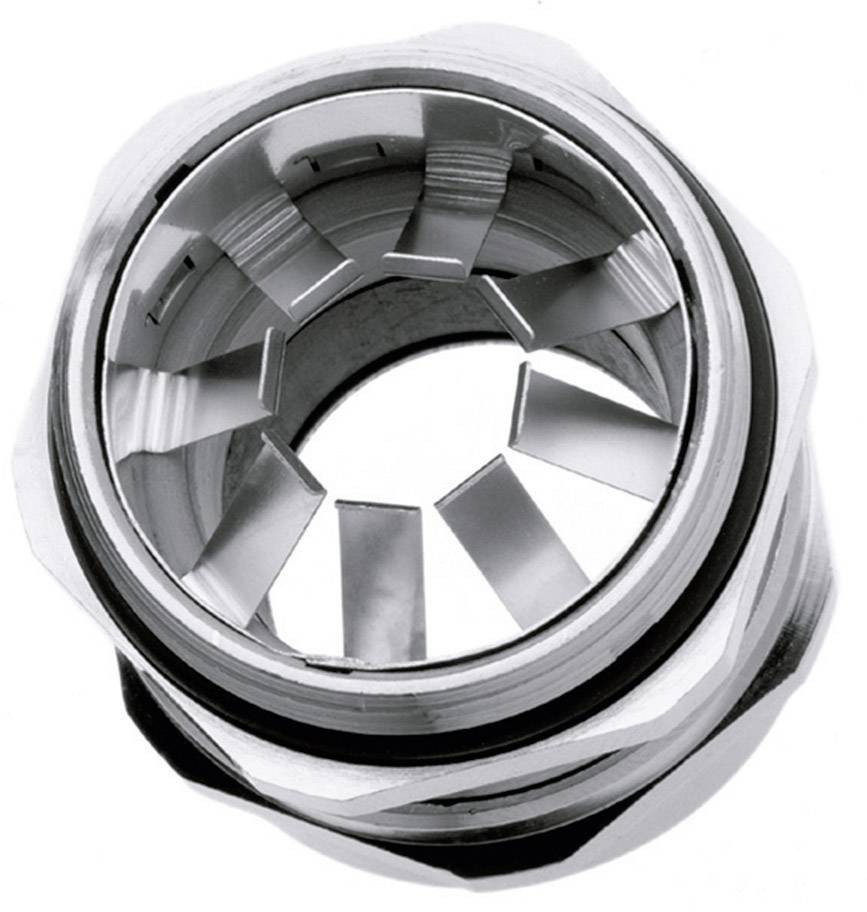

Description
For cables and wires with and without inner sheath. Also suitable for the continuation of the cable shield to another connection. Low-ohm shielding contact, optimum EMC protection. highly conductive, flexible EMC contact spring, thus simple installation of different shade diameter. A few steps, easy installation.
