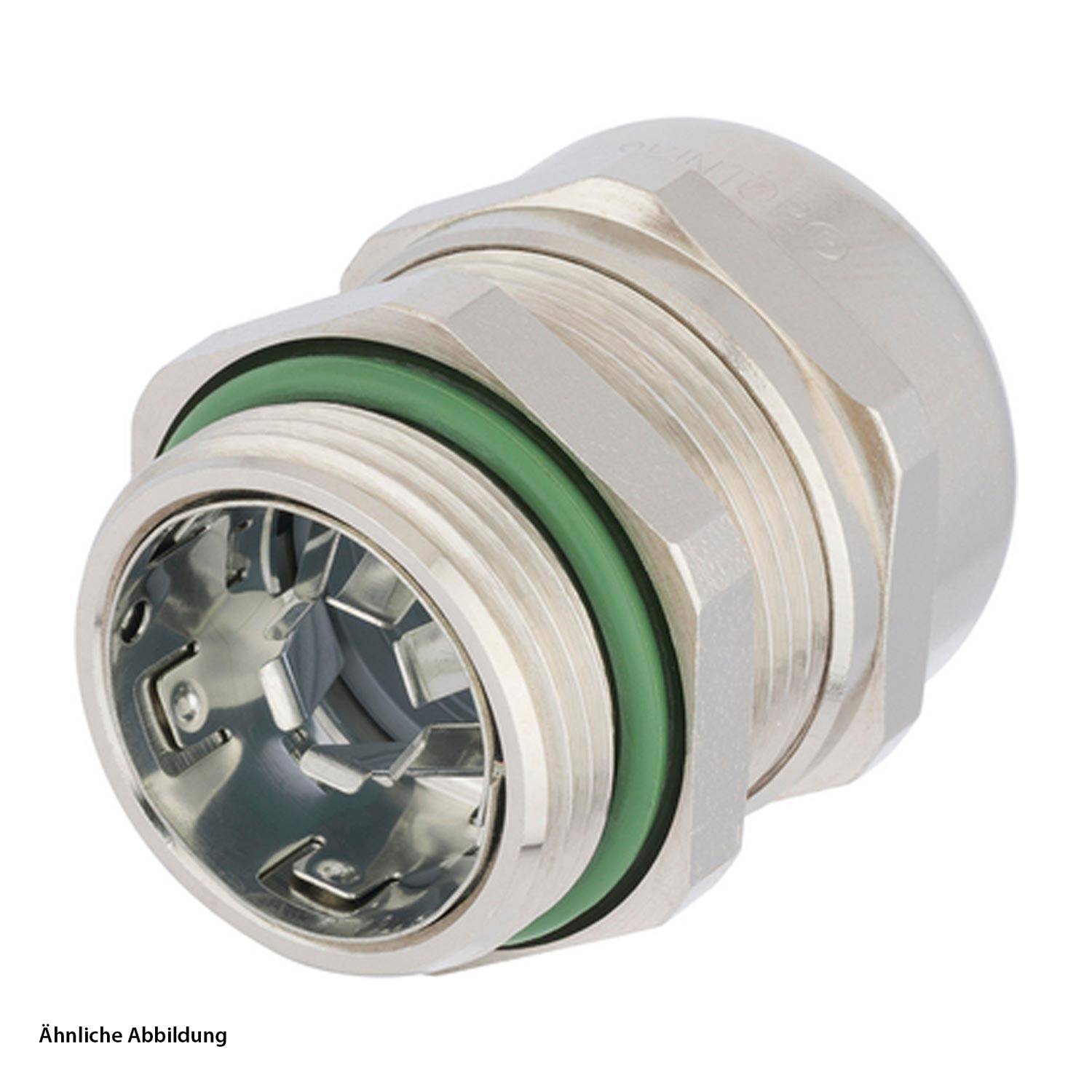

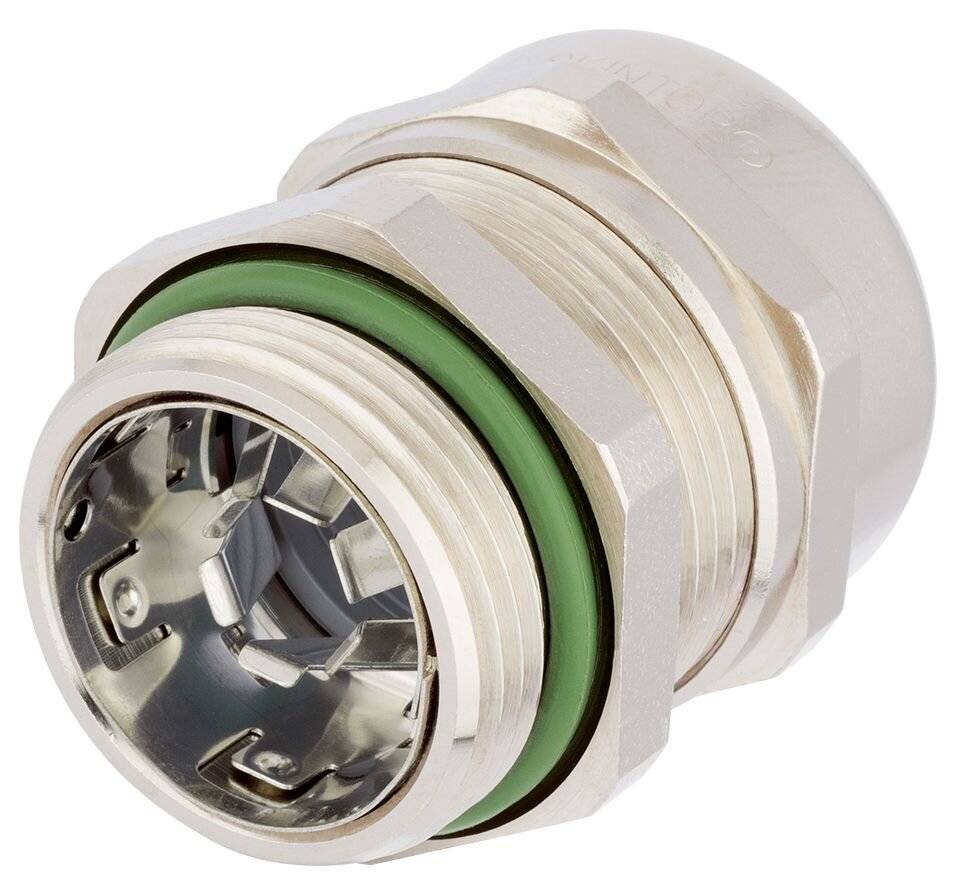

LAPP 53112535 Cable gland EMC M40 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M40
Material
Brass
Clamp Ø
19 mm
Terminal Ø (max.)
28 mm
Datasheet (PDF)
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
14-day return policy included
Highlights & Details
SKINTOP ® cable gland MS series-HF-M SC
Technical specifications
- Product type
Cable gland
- Features
EMC
- Factory colour
Brass
- External thread
M40
- Material
Brass
- Clamp Ø
19 mm
- Terminal Ø (max.)
28 mm
- Thread length
9 mm
- Min. temperature
-25 °C
- Max. temperature
+100 °C
IP68
- Spanner size
45 mm
- Certification marks
DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53112535
- Type
SKINTOP® MS-HF-M SC M40
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1601956 LAPP 53112535 Cable gland EMC M40 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1601956 LAPP 53112535 Cable gland EMC M40 Brass Brass 1 pc(s)
