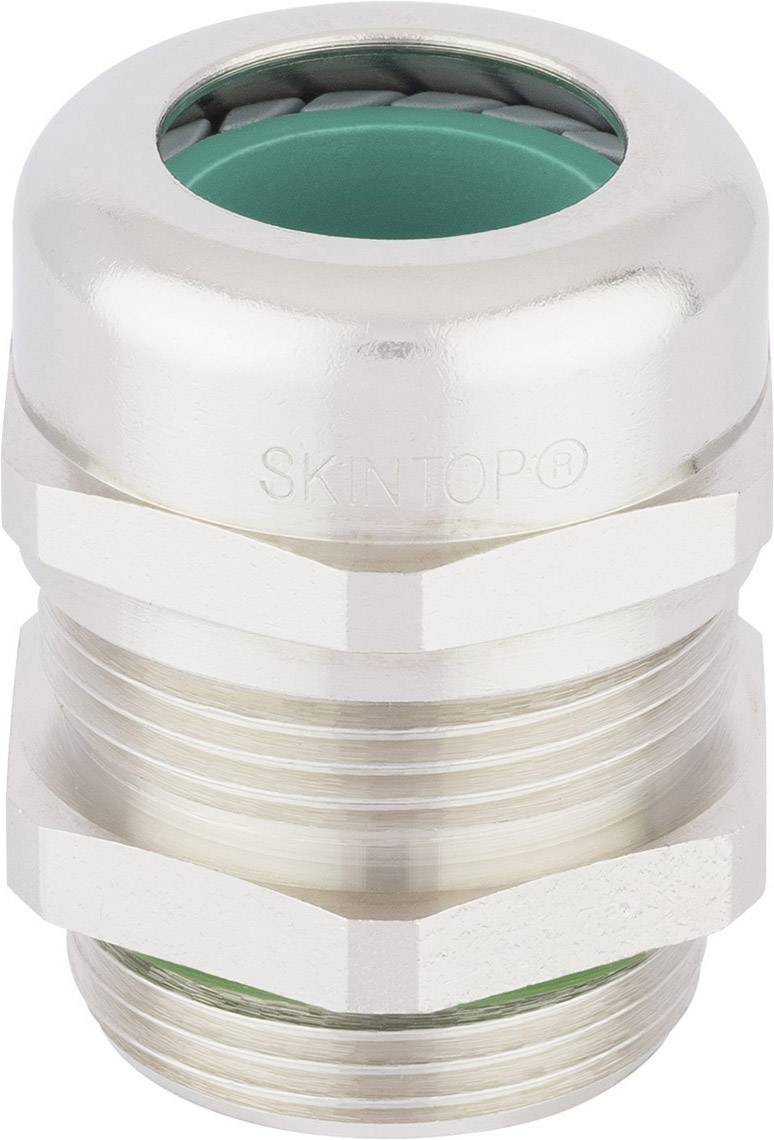

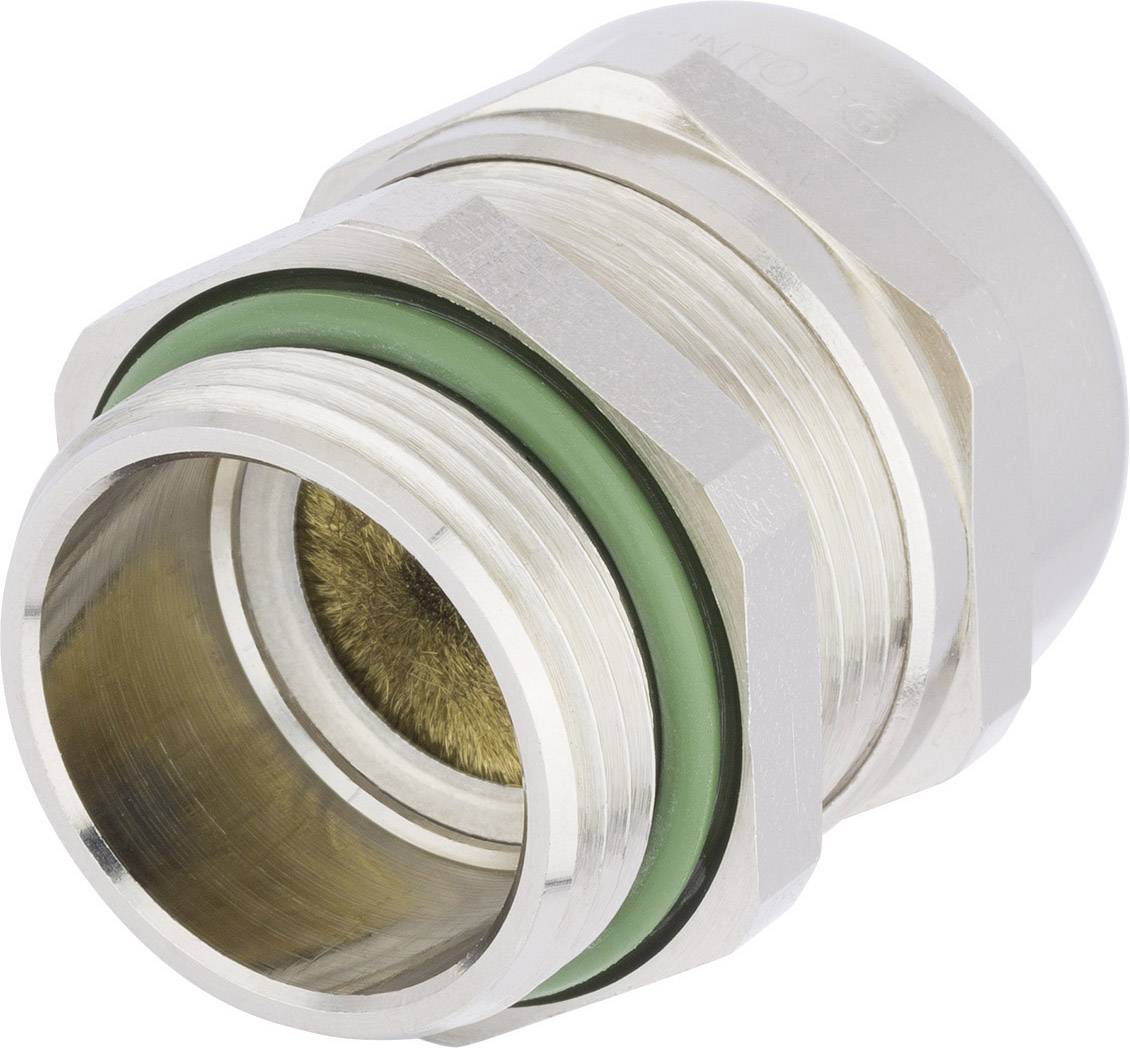

LAPP 53112546 Cable gland M50 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M50
Material
Brass
Clamp Ø
27 mm
Terminal Ø (max.)
35 mm
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.24
€ 88.23
plus VAT.
Only 4 Piece(s) available
Highlights & Details
SKINTOP ® cable gland MS series-HF-M BRUSH
Our service for you
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M50
- Material
Brass
- Clamp Ø
27 mm
- Terminal Ø (max.)
35 mm
- Thread length
10 mm
- Min. temperature
-25 °C
- Max. temperature
+100 °C
IP68
- Spanner size
54 mm
- Certification marks
DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53112546
- Type
SKINTOP® MS-HF-M BRUSH M50
Documents & Downloads
Datasheet
Datasheet 1601936 LAPP 53112546 Cable gland M50 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1601936 LAPP 53112546 Cable gland M50 Brass Brass 1 pc(s)
