1/5

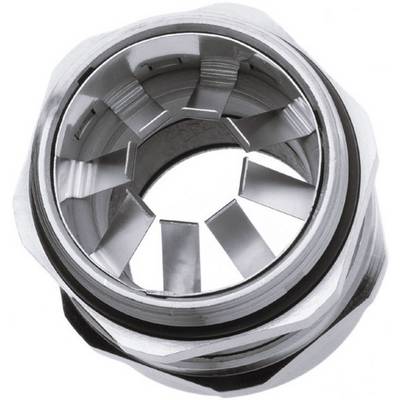

LAPP 53112610 Cable gland M12 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M12
Material
Brass
Clamp Ø
2 mm
Terminal Ø (max.)
5.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 10.92
-46 %
€
Highlights & Details
LAPP 53112610 Cable gland M12 Brass Brass 1 pc(s)
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M12
- Material
Brass
- Clamp Ø
2 mm
- Terminal Ø (max.)
5.5 mm
- Thread length
6.5 mm
- Min. temperature
-30 °C
- Max. temperature
+100 °C
IP68 (up to 5 bar)
- Spanner size
16 mm
- Halogen-free
No
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53112610
- Type
SKINTOP® MS-SC-M 12X1.5
- Material (details)
Body: nickel plated brass, insert: polyamide, sealing ring: CR/NBR, O-Ring: NBR
- Type
SKINTOP® MS-SC-M 12X1.5
- Temperature range
-30 - +100 ºC °C
Documents & Downloads
Datasheet
Datasheet 527048 LAPP 53112610 Cable gland M12 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 527048 LAPP 53112610 Cable gland M12 Brass Brass 1 pc(s)
Information
Information 527048 LAPP 53112610 Cable gland M12 Brass Brass 1 pc(s)
Description
Installation friendly, EMC secure screwed cable gland. The SKINTOP® MS-SC-M screen connection is the ideal screw-connection system for all CU shielded cables and leads. The patented inner contact springs create a low resistance shield contact quickly and securely.
