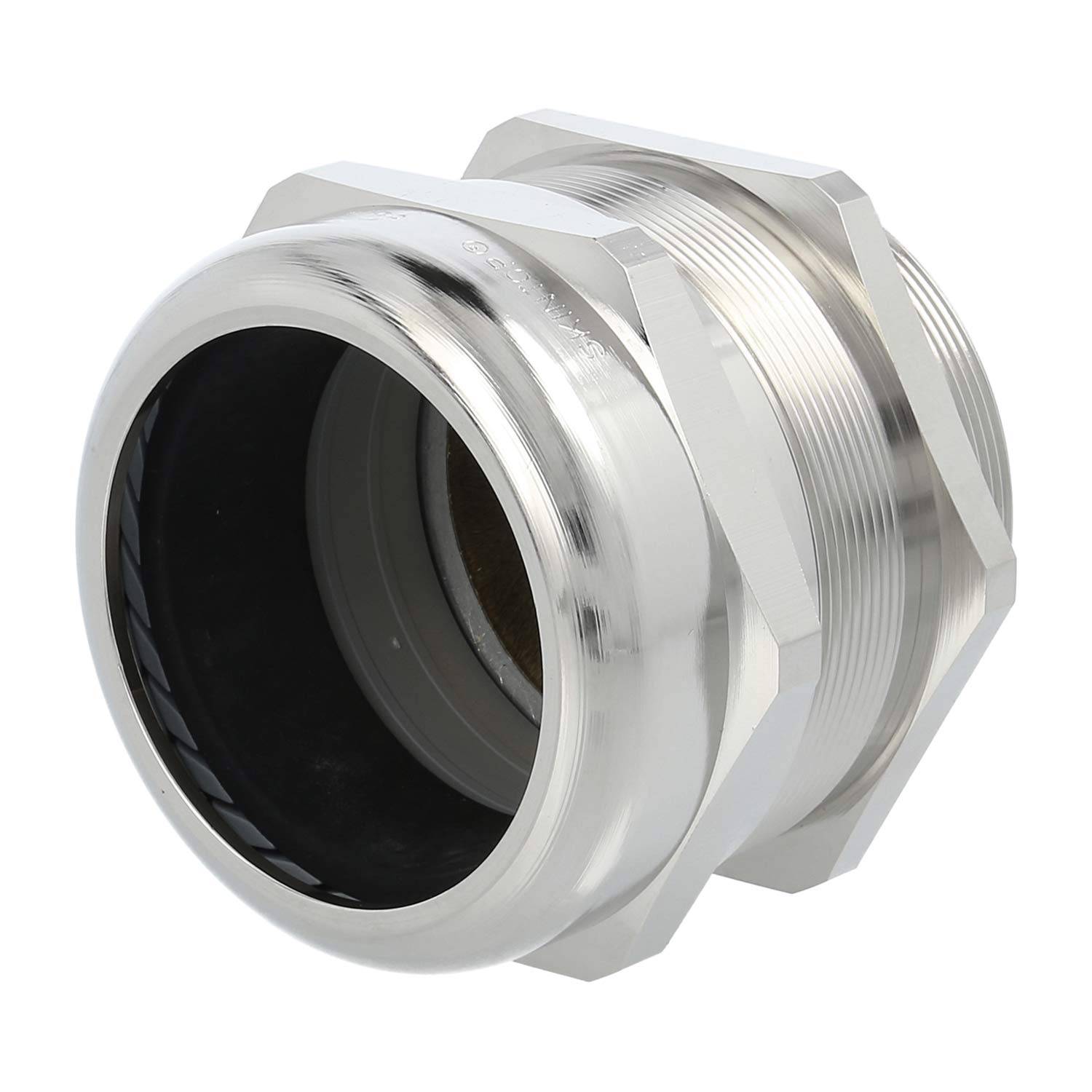

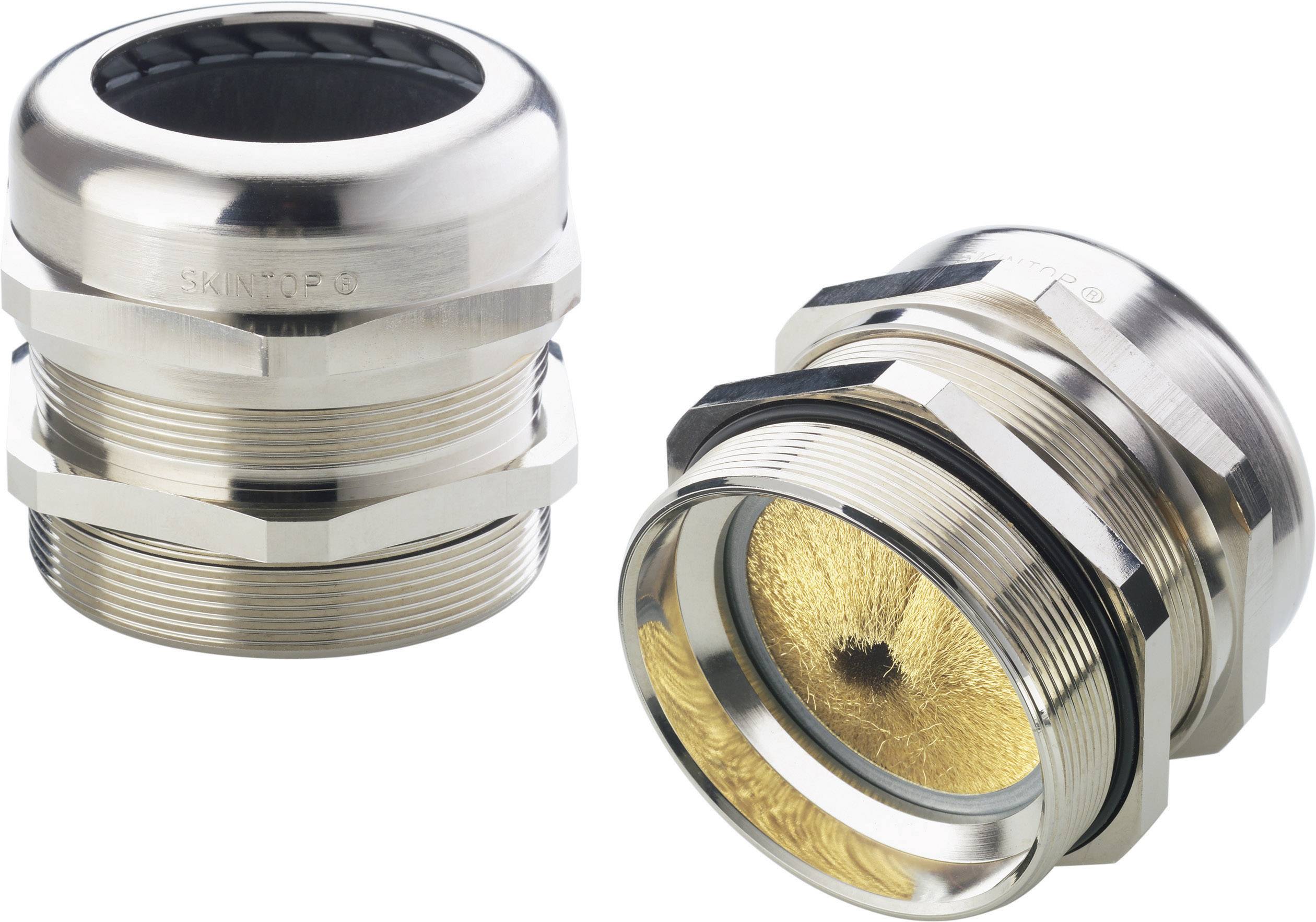

LAPP 53112681 Cable gland M63 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M63
Material
Brass
Clamp Ø
44 mm
Terminal Ø (max.)
55 mm
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 10 Piece(s) available
Highlights & Details
LAPP 53112681 Cable gland M63 Brass Brass 1 pc(s)
Our service for you
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M63
- Material
Brass
- Clamp Ø
44 mm
- Terminal Ø (max.)
55 mm
- Thread length
15 mm
- Min. temperature
-30 °C
- Max. temperature
+100 °C
IP69K
- Spanner size
75 mm
- Halogen-free
No
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53112681
- Type
SKINTOP® MS-M BRUSH 63x1,5 plus
- Type
SKINTOP MS-M BRUSH 63x1.5 plus
- Clamping range diameter mm
44 - 55 mm
- Temperature range
-30 - +100 °C
- Size
M63
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 536493 LAPP 53112681 Cable gland M63 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 536493 LAPP 53112681 Cable gland M63 Brass Brass 1 pc(s)
Information
Information 536493 LAPP 53112681 Cable gland M63 Brass Brass 1 pc(s)
Description
For EMC-compliant earthing of the Cu shield braid or for cables with Cu corrugated sheath.
